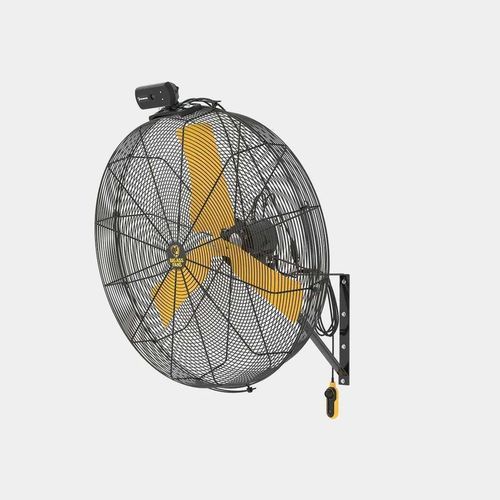

Axial fan AIREYE®

wall-mountindustrialoutdoor

Overview Portable directional fan with precision-balanced airfoils and a permanent-magnet EC motor that delivers up to 50% more CFM per watt than standard induction motors. Infinitely variable speed control for precise airflow adjustment. Designed for factories, warehouses and outdoor job sites; water-resistant construction (IPX5) allows hose-down cleaning.

Key Features

• Runs Cooler, Lasts Longer: Permanent-magnet EC motor generates less heat than induction motors, reducing wear and extending equipment life.
• Optional Motion Sensor: AEOS occupancy sensor option runs the fan only when people are present; detects motion up to 40 ft (≈12 m) within a 90° radius to reduce unnecessary runtime and energy use.
• IPX5 Rated — Hose It Down: Water-resistant design can be sprayed without disassembly for fast cleaning in industrial environments.
• Three Mounting Options: Multiple mounting choices for flexible installation.
• OSHA-compliant steel cage: Protective cage meeting OSHA requirements.

Mounting Options

• Wall Mount: Fixed position, mounts directly to walls or columns.
• Swivel Arm Mount: Adjustable position, rotates for directional control.
• I-Beam/C-Channel Mount: For bar joists and structural beams.

Technical Documentation (available)

• Tech Specs
• Install Guide
• Warranty

Technical specifications

• Model name: AIREYE® Wall Fan
• Brand: Big Ass Fans
• Motor: Permanent-magnet EC motor (energy-efficient, runs cooler)
• Efficiency: Delivers up to 50% more CFM per watt vs. standard induction motors
• Speed control: Infinitely variable
• IP rating: IPX5 (water resistant; hose-cleanable)
• Motion sensor: AEOS occupancy sensor option; detects motion up to 40 ft (≈12 m) within a 90° radius
• Mounting: Wall, Swivel Arm, I-Beam / C-Channel
• Blade diameters available: 20 in., 24 in., 30 in., 36 in.
• Blade color options: Yellow, Black
• Voltage options: 120v, 240v
• Safety: OSHA-compliant steel cage
• SKU (product code shown on page): AIREYE-WALL
• Price range (listed): $891.65 - $1,614.15
