Axial fan PIVOT
wall-mountceiling mountindustrial

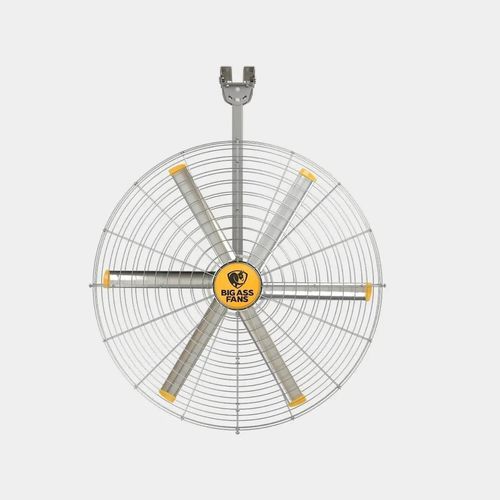

Axial fan - PIVOT - Big Ass Fans - wall-mount / ceiling mount / industrial
Axial fan - PIVOT - Big Ass Fans - wall-mount / ceiling mount / industrial
Axial fan - PIVOT - Big Ass Fans - wall-mount / ceiling mount / industrial - image - 2
Axial fan - PIVOT - Big Ass Fans - wall-mount / ceiling mount / industrial - image - 3
Axial fan - PIVOT - Big Ass Fans - wall-mount / ceiling mount / industrial - image - 4
Axial fan - PIVOT - Big Ass Fans - wall-mount / ceiling mount / industrial - image - 5
Axial fan - PIVOT - Big Ass Fans - wall-mount / ceiling mount / industrial - image - 6
Add to favorites
Compare this product

Characteristics

Technology
axial
Installation
wall-mount, ceiling mount
Sector
industrial
Location
indoor
Material
metal
Color
silver-colored
Other characteristics
HVLS, directional
Noise level

78 dB

Weight

51.7 kg
(113.98 lb)

Height

1,937 mm
(76 in)

Width

387 mm
(15 in)

Length

1,937 mm
(76 in)

Power

498 W

Description

Overview
Pivot is a heavy-duty wall fan that delivers targeted airflow to specific workstations, bays, and zones where ceiling fans can't be installed. High-velocity wall mount fan providing targeted directional airflow in tight spaces. Variable speed control adjusts output without changing the fan's position.

Key Features
  • 1,000+ directional positions: Three pivoting joints let you set the angle at installation and lock it in to point at a workstation, an aisle, or a process area.
  • Airflow felt over 120 feet (≈37 m): Six precision-balanced aluminum airfoils on a 6.35 ft (1.94 m) frame push air farther than standard wall fans, covering large bays and long aisles from a single unit.
  • Gearless direct-drive motor: Fewer moving parts means lower noise, lower energy use, and less maintenance.
  • Mounts where HVLS can’t: Installs on bar joists, I-beams, columns and other tight/crowded spaces. Airfoil retainers, safety cables, and guy wires are included.

Technical documentation (available)
  • Tech Specs (cutsheet)
  • Column Mount Install Guide
  • Ceiling Mount Install Guide
  • Warranty (directional fan warranty document)

Applications
Targeted airflow for the exact spot that needs it: ideal for workstations, aisles, process areas, bays and other locations where ceiling mounting is not feasible.

Technical specifications
  • Model name: Pivot
  • Frame diameter: 6.35 ft (1.94 m) (six airfoils)
  • Airfoils: Six precision-balanced aluminum airfoils
  • Directional positions: 1,000+ adjustable/lockable positions via three pivoting joints
  • Effective airflow distance: Airflow felt over 120 feet (≈37 m)
  • Motor: Gearless direct-drive motor with variable speed control (reduced noise and maintenance)
  • Mounting options: Designed for bar joists, I-beams, columns; includes airfoil retainers, safety cables, and guy wires
  • Voltage options: 100-125V/1Ph and 200-240V/1Ph (selectable)
  • Typical use: Targeted workstation/aisle/bay cooling where ceiling fans cannot be used
  • Package: Includes required safety hardware for wall/column/ceiling installations
  • Price range (site listing): 6,299.00 - 6,399.00 (USD)
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
