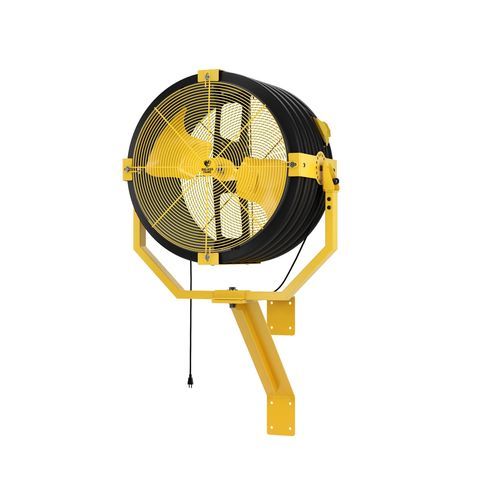

Axial fan JACKET®

wall-mountceiling mountindustrial

Overview
Wall, column, swivel-arm, overhead beam, and bar-joist configurations. Same 30" Yellow Jacket fan head on every mount. Grade 8 hardware standard. Moves air up to 95 feet.

Key Features

• Heavy-Gauge Steel Construction: Steel frame, high-density polyethylene housing, and OSHA-compliant 1/8" steel spiral guards.
• IPX5 Rated — Hose It Down: Entire fan is rated for direct water spray. No disassembly required.
• 360° Vertical Rotation with Lockable Positioning: Lock airflow at any angle without repositioning the bracket. Optional oscillator kit adds 45°, 60°, or 90° sweep for broader zone coverage.
• Run Multiple Fans From One Place: Add BAFCon controller to group and manage up to 8 fans together — adjust speed, scheduling, and automated modes without walking the floor.

Options

• Mount Types: Wall/Column, 2 ft Ceiling/I-Beam (and other mount configurations listed).
• Voltage Options: 110-120v, 210-240v.
• Oscillator Kit: Available (Yes/No). When installed, offers selectable sweep angles (45°, 60°, 90°).

Technical Documentation

• Tech Specs (available)
• Install Guide (available)
• Warranty (available)

Specifications / Technical Specifications

• Series / Model Head: 30" YELLOW JACKET® fan head
• Maximum throw: Moves air up to 95 feet (approx. 29 m)
• Construction: Heavy-gauge steel frame with high-density polyethylene (HDPE) housing
• Guards: OSHA-compliant 1/8" steel spiral guards
• Ingress Protection: IPX5 — rated for direct water spray
• Rotation: 360° vertical rotation with lockable positioning
• Oscillator: Optional oscillator kit; selectable sweep: 45°, 60°, or 90°
• Control: Compatible with BAFCon controller to group and manage up to 8 fans
• Hardware: Grade 8 hardware standard
• Mounting: Supports wall, column, swivel-arm, overhead beam, bar-joist, and other mount configurations
• Voltage variants: 110-120V or 210-240V
