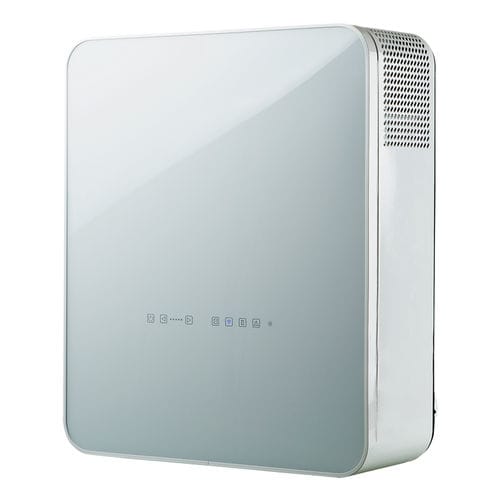

Single-room air handling units. Maximum air flow up to 100 m³/h.
Efficient solution for supply and exhaust ventilation of enclosed spaces.
Electric preheater or reheater modification available for cold climate conditions.
Heat exchanger with an enthalpy membrane modification available for humid and hot climate conditions.
Low-energy EC motors.
Silent operation.
Upgradeable with an exhaust duct to provide air extraction from the bathroom.
Easy installation.
Compact size.
Controlled by Android or iOS smartphone or tablet over Wi-Fi.
Polymer coated metal casing decorated with an acrylic front panel. Heat and noise insulation is ensured by a layer of 10 mm cellular synthetic rubber.
The front panel provides convenient access for filter maintenance and has a lock for extra security.
The unit has two ∅ 100 mm pipes for fresh air intake and stale air extraction outside. The third ∅ 100 mm pipe (included in the scope of delivery) can be additionally fitted to the unit to connect the exhaust air duct from the bathroom.
The units feature efficient electronically commutated (EC) motors with an external rotor and impellers with forward curved blades. These stateof- the-art motors are the most advanced solution in energy efficiency today.
EC motors are characterised with high performance and optimum control across the entire speed range. In addition to that the efficiency of electronically commutated motors reaches very impressive levels of up to 90 %.
