Compact heat recovery air handling unit. Maximum air flow up to 300 m³/h.
Air handling units for efficient supply and exhaust ventilation in flats, houses, cottages and other buildings.
The heat recovery technology is used to minimize ventilation heat losses.
Control of air exchange for creating comfortable indoor microclimate.
Compatible with round Ø 125 mm air ducts.
The unit is equipped with high-efficient external rotor EC motors and centrifugal impellers with forward curved blades.
EC motors have the best power consumption to air flow ratio and meet the latest demands concerning energy saving and high-efficient ventilation.
EC motors are featured with high performance, low noise level and totally controllable speed range.
The impellers are dynamically balanced.

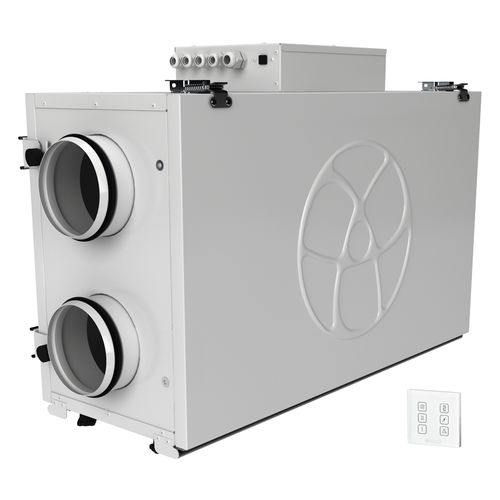

The casing of KOMFORT Ultra EC L2 300 … white is made of double-skinned white painted metal panels, internally filled with 20 mm mineral wool layer for heat- and sound-insulation.
The spigots are located at the sides of the unit and are equipped with rubber seals for airtight connection to the air ducts.
The hinged panel of the casing ensures easy access to the unit internals for service works including cleaning, filter replacement, etc.
The KOMFORT Ultra EC L2 300-H … white unit is equipped with a plate cross-flow polystyrene heat exchanger for heat recovery. The unit condensate is collected and drained to the drain pan under the heat exchanger.
The KOMFORT Ultra EC L2 300-E … white unit is equipped with an enthalpy plate cross-flow heat exchanger for energy (heat and humidity) recovery. Due to humidity recovery condensate is not generated in the enthalpy heat exchanger.
