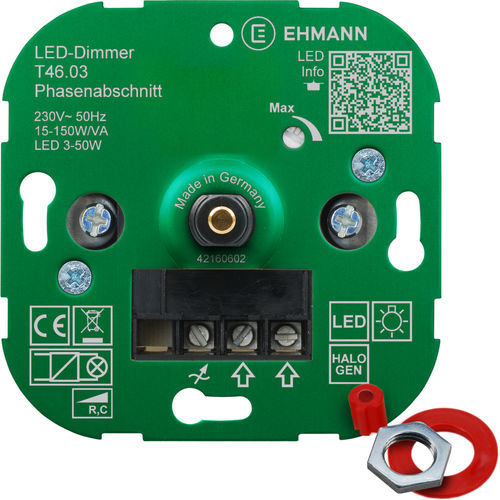

Light dimmer switch T46.03push-buttonrotaryelectronic
Add to favorites
Compare this product
Characteristics
- Use
- light
- Type
- push-button, rotary
- Technology
- electronic
- Installation
- recessed
- Other characteristics
- LED
Description
Product information
3 - 50 W LED power
15 - 150 W/VA other loads
230 V~, 50 Hz rated voltage
Suitable for dimmable LED lamps, dimmable LED drivers, incandescent, HV and LV halogen lamps with electronic transformer
Rotary dimmer with push-change switch
Compatible with switch systems from Busch-Jäger, Gira, Berker, Jung etc.
SILENT TECHNOLOGY - absolutely noiseless operation
Optimization functions for flicker-free dimming of LED lamps at maximum range
Electronic short-circuit/overload/overtemperature protection with automatic reactivation
No standby consumption due to true on/off switch
Safety and warnings
DANGER! Risk of electric shock or fire. Installation, connection and assembly must be carried out exclusively by a qualified electrician. Technical data and national regulations (e.g. DIN VDE) must be observed. Failure to follow the instructions may cause damage to the device, fire or other hazards. Do not operate damaged devices. Any intervention on the device voids the warranty. Use the dimmer only in dry indoor locations; avoid adverse environmental conditions (e.g. relative humidity above 80%, ambient temperatures above 35°C, flammable gases, dust, vapours). Only operate with cover permanently fitted.
Additional product features
EHMANN advantage - 100% quality control, 5-year warranty, German manufacturer
EHMANN service - Current LED lamp recommendations accessible at any time via printed QR code
EHMANN quality - High-quality workmanship and reliable function
Technical specifications
3 - 50 W LED power
15 - 150 W/VA other loads
230 V~, 50 Hz rated voltage
Suitable for dimmable LED lamps, dimmable LED drivers, incandescent, HV and LV halogen lamps with electronic transformer
Rotary dimmer with push-change switch
Compatible with switch systems from Busch-Jäger, Gira, Berker, Jung etc.
SILENT TECHNOLOGY - absolutely noiseless operation
Optimization functions for flicker-free dimming of LED lamps at maximum range
Electronic short-circuit/overload/overtemperature protection with automatic reactivation
No standby consumption due to true on/off switch
Safety and warnings
DANGER! Risk of electric shock or fire. Installation, connection and assembly must be carried out exclusively by a qualified electrician. Technical data and national regulations (e.g. DIN VDE) must be observed. Failure to follow the instructions may cause damage to the device, fire or other hazards. Do not operate damaged devices. Any intervention on the device voids the warranty. Use the dimmer only in dry indoor locations; avoid adverse environmental conditions (e.g. relative humidity above 80%, ambient temperatures above 35°C, flammable gases, dust, vapours). Only operate with cover permanently fitted.
Additional product features
EHMANN advantage - 100% quality control, 5-year warranty, German manufacturer
EHMANN service - Current LED lamp recommendations accessible at any time via printed QR code
EHMANN quality - High-quality workmanship and reliable function
Technical specifications
- LED power range: 3 - 50 W
- Other loads power range: 15 - 150 W/VA
- Rated voltage: 230 V~, 50 Hz
- Type: Flush-mount dimmer, rotary dimmer with push-change switch
- Compatibility: Dimmable LED lamps, dimmable LED drivers, incandescent and halogen lamps (HV/LV with electronic transformer)
- Switch systems: Compatible with Busch-Jäger, Gira, Berker, Jung etc.
- Safety functions: Electronic short-circuit/overload/overtemperature protection with automatic reactivation
- Special features: SILENT TECHNOLOGY (noiseless), no standby consumption
- Warranty: 5 years (manufacturer)
- Product number (SKU): 4600x0300
- EAN / GTIN-13: 4012096003007
- Price (displayed): 50,22 EUR
