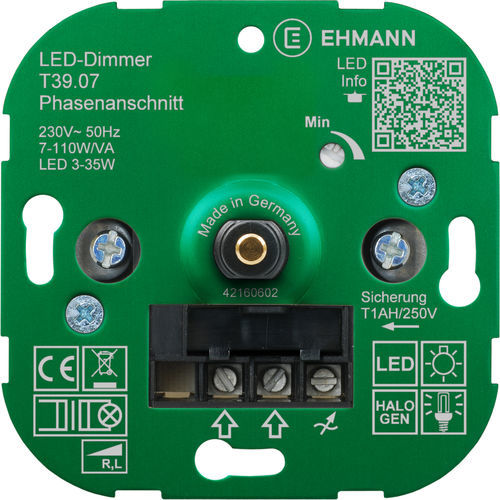

Light dimmer switch 3900x0700rotarypush-buttonelectronic
Add to favorites
Compare this product
Characteristics
- Use
- light
- Type
- rotary, push-button
- Technology
- electronic
- Installation
- recessed
- Material
- metal
- Color
- green
Description
Product description
Safety and warnings
DANGER! Risk of fatal electric shock or fire. Installation, connection and mounting must be carried out only by a qualified electrician. All technical information does not exempt from the obligation that work on the 230 V network must be performed by a qualified electrician. CAUTION! Failure to follow the operating instructions may cause damage to the device, fire or other hazards. Do not operate damaged devices; defective devices must be taken out of service immediately. Opening or modifying the device voids the warranty. Use the dimmer only in dry indoor locations. Avoid operation under unfavorable environmental conditions (e.g. relative humidity above 80%, ambient temperatures above 35°C, presence of flammable gases, dust or vapors). Operate permanently only with cover in place. Compliance with these instructions is part of our warranty conditions.
Technical features
- LED flush-mount dimmer with leading-edge (phase-cut) control for 230 V, 50 Hz installations
- Load range: LED 3–35 W; resistive/inductive range 7–110 W/VA
- Suitable for dimmable LED lamps and incandescent/HV/NV halogen with magnetic transformer
- Rotary dimmer combined with a push-change switch for on/off and mode selection
- Adjustment options to optimize flicker-free dimming with compatible LED lamps
- Integrated protection: short-circuit, overload and over-temperature
- Green-anodized mounting plate with QR code linking to recommended LED types
- Includes switch-program adapter for compatibility with switch programs
- Shaft: Ø 4 mm metal; Connection: screw terminals
Safety and warnings
DANGER! Risk of fatal electric shock or fire. Installation, connection and mounting must be carried out only by a qualified electrician. All technical information does not exempt from the obligation that work on the 230 V network must be performed by a qualified electrician. CAUTION! Failure to follow the operating instructions may cause damage to the device, fire or other hazards. Do not operate damaged devices; defective devices must be taken out of service immediately. Opening or modifying the device voids the warranty. Use the dimmer only in dry indoor locations. Avoid operation under unfavorable environmental conditions (e.g. relative humidity above 80%, ambient temperatures above 35°C, presence of flammable gases, dust or vapors). Operate permanently only with cover in place. Compliance with these instructions is part of our warranty conditions.
Technical features
- Connection: screw terminals
- Mounting type: flush-mount
- LED power: 3–35 W
- Load range (W/VA): 7–110 W/VA
- Phase control: leading-edge (phase-cut)
- Control type: rotary dimmer with push-change switch
- Protection functions: short-circuit, overload, over-temperature
- Shaft: Ø 4 mm metal
- Includes: switch-program adapter
- Color: green (green-anodized mounting plate)
