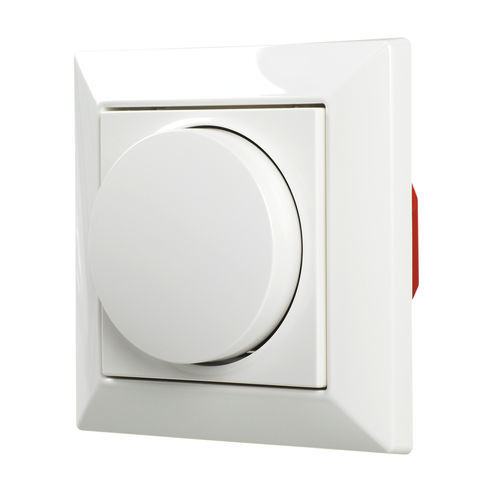

Light dimmer switch T55.00

automaticelectronicrecessed

Product information
LED power: 3 - 160 W
Power: 7 - 400 W/VA
Rated voltage: 230 V~, 50 Hz
Universal LED dimmer for reliable dimming regardless of LED manufacturer and type
Complete unit - usable as single-gang solution or for integration in switch systems with 55x55 mm standard cutout
Color white (polar white/pure white similar to RAL 9010)

• ISO-gate® Technology – For maximum power range and LED compatibility
• Silent Technology – Completely silent operation
• User-selectable dimming principle (leading edge or trailing edge), manually switchable
• Easy adjustment of min. and max. brightness to optimize flicker-free dimming
• Automatic neutral conductor detection
• 2- or 3-wire connection possible
• Electronic short-circuit and overload protection as well as overtemperature protection with automatic reactivation
• No standby consumption thanks to true on/off switch
• Compatible with switch systems from Busch-Jäger, Gira, Berker, Jung etc.
• EHMANN advantage – 100% quality control, 5 years warranty, German manufacturer

Technical data (excerpt)
Connection: screw terminal
LED power: 3 - 160 W LED
Power: 7 - 400 W/VA
Scope of delivery: incl. cover
Contents/unit: 1 piece
