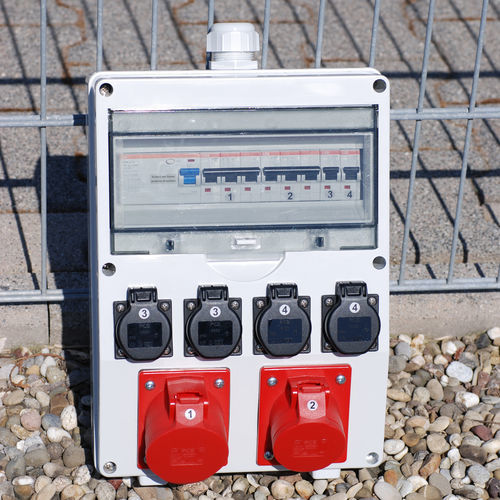

Switchgear 0530x0000000
Add to favorites
Compare this product
Description
Product information
Availability
Immediately available, delivery time: 2-5 days
Technical specifications
- Outputs:
- 1 x CEE 32 A, 400 V
- 1 x CEE 16 A, 400 V
- 4 x 230 V socket outlets
- Protection:
- 1 x MCB 32 A, 3-pole, Type C
- 1 x MCB 16 A, 3-pole, Type C
- 2 x MCB 16 A, 1-pole, Type C
- with RCD 40 A, 4-pole, 400 V~, 30 mA (Type A) covering all outputs
- Robust, impact-resistant housing made of high-quality ABS plastic
- Wall mounting
- Protective devices located under a lockable, impact-resistant polycarbonate cover
- Sockets with self-closing hinged lids made of impact-resistant polyamide 6
- Equipment: hinged-cover sockets 4 x 16A/230V, 1 x 16A/400V, 1 x 32A/400V
- Protection devices (ABB): 1 x 3-pole MCB, 4 x 1-pole MCB, RCD 40A/400V Type A 30mA
- Incoming cable via PG M32 cable gland from top (blind M32 plug at bottom)
- Made in Germany, 100% tested, with serial number; test certificate available
- Ingress protection: IP54
Availability
Immediately available, delivery time: 2-5 days
Technical specifications
- Product type: Plastic wall distribution box
- Output connections: 1x CEE 32A, 1x CEE 16A, 4x 230V sockets
- Miniature circuit breakers (MCB): 1x 32 A (3-pole, C), 1x 16 A (3-pole, C), 2x 16 A (1-pole, C)
- Residual-current device (RCD): 40 A / 400 V~, 4-pole, 30 mA (Type A)
- Enclosure material: ABS plastic
- Protective device cover: Polycarbonate (lockable)
- Socket hinged lids: Polyamide 6 (self-closing, impact-resistant)
- Incoming cable: PG M32 cable gland (top), blind M32 plug (bottom)
- Ingress protection: IP54
- Manufacture: Germany (100% tested, serial number, test certificate available)
- Variants: Wall distribution box
- Article number: 0530x0000000
- EAN: 4012096009511
