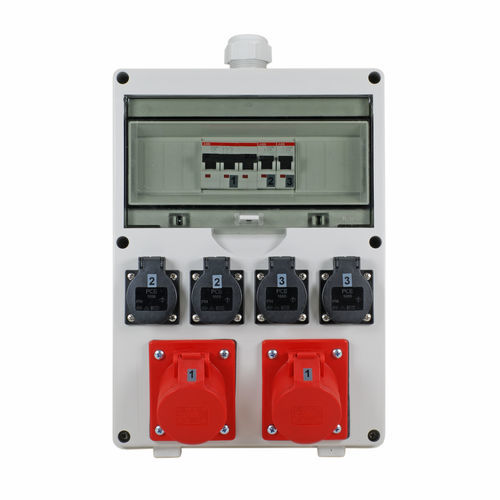

Switchgear 0530x0002000

Product information
Output: 2 x CEE 16 A, 400 V~
4 x socket 230 V~
Protection: 1 x MCB 16 A, 3-pole, type C; 2 x MCB 16 A, 1-pole, type C

Features

• Impact-resistant housing made of ABS plastic
• Wall-mountable design
• Switching devices under lockable, impact-resistant polycarbonate cover
• Sockets with self-closing hinged covers made of impact-resistant polyamide 6
• Configuration: 4 x 16A/230V hinged-cover sockets, 2 x 16A/400V
• Protection (ABB): 1 x 3-pole MCB, 2 x 1-pole MCB
• Cable entry via PG M32 cable gland on top (M32 blind gland at bottom)
• Made in Germany, 100% tested, serial number and test report available
• 5-year manufacturer warranty
• BGI-GUV-I608 compliant (K2)
• Ingress protection: IP54

Safety and warning information
DANGER: Electric shock from live components on the device.
Electric shock hazard from live components inside the opened device during maintenance and repair.
Hazards from working on an open device by non-qualified personnel.

• The device may only be opened, maintained and repaired by qualified electricians wearing personal protective equipment. For operators (non-qualified personnel) the device must always remain closed.
• All components inside the device may only be replaced by qualified electricians with personal protective equipment.
• The five safety rules of electrical work must be observed.

Maintenance note
WARNING: Fire hazard due to faulty maintenance. Failure to check screw connections can lead to cable fire inside the device. Torque checks of screw connections must be carried out in accordance with DGUV Rule 3 or applicable national regulations (see manual for distributor maintenance and repair / check screw connections).

Characteristics / Technical specifications

• Product type: PROFI wall distribution box
• Outputs: 2 x CEE 16 A (400 V), 4 x socket 230 V
• Protection: 1 x MCB 16 A 3-pole (C), 2 x MCB 16 A 1-pole (C)
• Housing material: ABS plastic (impact-resistant)
• Hinged cover material: Polyamide 6 (self-closing)
• Protective cover: Lockable, impact-resistant polycarbonate cover for switching devices
• Cable entry: PG M32 cable gland top; M32 blind gland bottom
• Ingress protection: IP54
• Standard / Compliance: BGI-GUV-I608 compliant (K2)
• Manufacture: Made in Germany; 100% tested, serial number and test report available
• Warranty: 5-year manufacturer warranty
• Product number (item no.): 0530x0002000
• GTIN / EAN: 4012096012528
