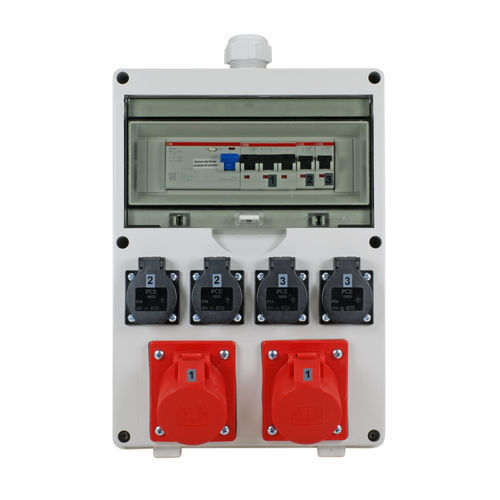

Switchgear 0530x0001000

Product overview

• Outputs: 2 x CEE 16 A, 400 V~; 4 x socket 230 V~

Protection and circuit breakers

• 1 x MCB 16 A, 3-pole, characteristic C
• 2 x MCB 16 A, 1-pole, characteristic C
• RCD 40 A, Type A, 4-pole, 400 V~, 30 mA protecting all outlets

Enclosure & installation

• Robust, impact-resistant enclosure made of high-grade ABS plastic
• Protective switching devices under lockable, impact-resistant polycarbonate cover
• Sockets with self-closing hinged lids made of impact-resistant polyamide 6
• Cable entry via PG M32 cable gland from above (blind gland M32 at bottom)
• Easy wall mounting

Equipment

• Hinged-lid sockets: 4 x 16 A / 230 V
• CEE sockets: 2 x 16 A / 400 V
• Protection (manufacturer data ABB): 1 x MCB 3-pole, 2 x MCB 1-pole, RCD 40 A / 400 V Type A 30 mA

Certificates, testing & warranty

• Made in Germany, 100% tested, with serial number; test report available
• 5 years manufacturer warranty
• Conforms to BGI-GUV-I608 (K2)
• Ingress protection: IP54

Notice
Protective and warning instructions must be observed; work on the device may only be carried out by qualified electricians.

Technical specifications

• Product title: PROFI Wandverteiler mit FI und Leitungsschutzschaltern, 6 Ausgänge (2 x CEE 16 A / 4 x 230 V~)
• Product number (SKU): 0530x0001000
• EAN / GTIN-13: 4012096012511
• Outputs: 2 x CEE 16 A (400 V), 4 x socket 230 V
• Circuit protection: 1 x MCB 16 A 3-pole (C), 2 x MCB 16 A 1-pole (C)
• RCD: 40 A, Type A, 4-pole, 30 mA
• Enclosure material: ABS plastic; cover: polycarbonate (lockable)
• Socket lids: polyamide 6, self-closing
• Cable entry: PG M32 cable gland (top), blind gland M32 (bottom)
• Ingress protection: IP54
• Manufacturer warranty: 5 years
• Compliance: BGI-GUV-I608 (K2)
