Contemporary kitchen XPL

compositeFenix NTM®Corian®

Overview

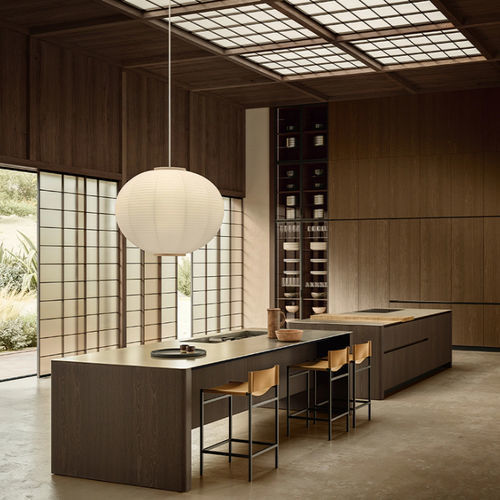

XPL is a minimalist kitchen island system that reduces the composition to a pure volumetric element. The island reads as a compact domestic architecture: continuous surfaces, softened corners and a signature structural detail that defines the project.

Designer & Concept
Designer: Piero Lissoni. XPL evolves from the historic Xila system (Luigi Massoni, 1972) and is founded on a structural approach that prioritises reduction of form, controlled proportions and refined construction detail.

Design details
The signature detail is a 90 mm chamfered side panel with a 32 mm outer radius, creating a soft curved edge. The range is offered in a plinth-mounted (floor-panel) monolithic version and a suspended version at plinth height to emphasise volumetric lightness. The top slightly overhangs the side panels and is finished with a 34 mm radius on all four corners.

Configurations & Top options

• Suspended units can integrate a rear snack counter structurally connected to the system (span tested to 3.60 m).
• Available top finishes and thicknesses: 4 mm solid stainless steel; 12 mm MDi composite; 20 mm marble.

Materials & Construction

• Carcass: 19 mm low-formaldehyde particleboard (Class E1, CARB P2 / TSCA Title VI), melamine-faced with high-weight paper treated with melamine resin; ABS front and back edges, same colour.
• Doors/Fronts: square edged door, thickness 23 mm.
• Plinth: extruded aluminium profile, height 100 mm; multiple finish options.
• Handles: handle rail options (HANDLE RAIL / HANDLE RAIL style).

Finishes & Materials

• Wood veneers and wood surfaces (examples: thermo-treated larch, elm, grey-graphite oak, natural oak, Canaletto walnut, smoked oak, Ecowood variants).
• Lacquers and painted finishes (EASYLAK+, ECOLAK, SILCOLAK) and polyester high-gloss.
• Lasermat / FENIX NTM® technical surfaces, CORIAN® solid surface, MDi and composite options, DEKTON®/stone, marbles and granites.
• Metal-effect lacquers and stainless steel finishes (matt-satin / pre-satin).

Dimensions & Technical specifications

• Model: XPL
• Brand: Boffi
• Designer: Piero Lissoni
• Carcass material: 19 mm low-formaldehyde particleboard, melamine-faced, ABS edges
• Carcass heights: 540 mm / 790 mm
• Carcass depths: 320 mm / 600 mm
• Carcass widths (modules): 150 / 300 / 450 / 600 / 900 / 1200 mm
• Door thickness: 23 mm
• Top thickness options: 4 mm (stainless steel) / 12 mm (MDi) / 20 mm (marble)
• Signature side-panel: 90 mm chamfer with 32 mm radius
• Top corner radius: 34 mm
• Plinth height: 100 mm; extruded aluminium profile

Notes
Availability of specific finishes and materials may vary by production and point of sale. For configuration, compatibility and lead times, consult the local Boffi dealer or technical sales representative.
