Fabric solar shading B1200

for facadewindowvertical

Overview

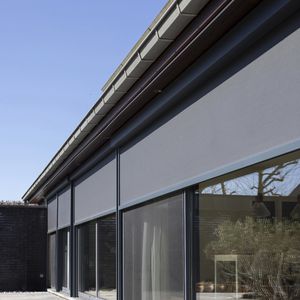

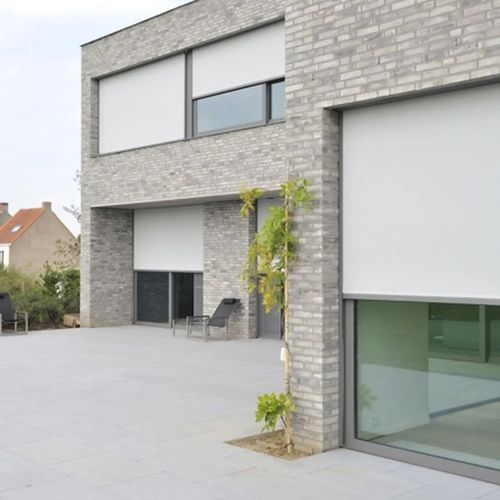

Inbuilt screens are solar shading systems integrated into the façade with a dedicated housing and side rails to achieve a discreet, flush finish. They provide solar control, glare reduction, privacy and insect protection while preserving the view to the exterior. The bottom lead rail can be concealed within the housing for a clean aesthetic. ZIP technology keeps the fabric tensioned in the side rails for enhanced wind resistance.

Application
Designed for new-build and major renovation projects where an invisible, architecturally integrated shading solution is required. The housing, screen and side rails can be installed together with windows to create a seamless façade appearance.

Key benefits

• Seamless integration into the façade
• ZIP-guided fabric for stable tension and improved wind resistance

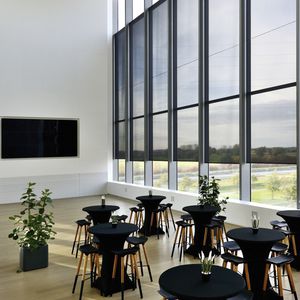

• Solar control and glare reduction for improved interior comfort
• Maintains outside view while increasing privacy
• Effective insect protection
• Concealable bottom rail for a clean architectural finish

Design & operation
The housing and side rails are engineered for built-in installation in masonry or curtain wall facades, keeping the system visually discreet. ZIP-guided fabric ensures stability under wind load and minimizes internal reflections on screens (TV, computer).

Typical configurations / limitations
Subject to width and height limits and housing dimensions; consult technical specifications for project design and integration constraints. Recommended for vertical façades and window recesses.

Technical specifications

• Model reference: B1200 (Brustor)
• Maximum width: Max 7.20 m
• Maximum height: Max 3.50 m
• Housing dimensions: 165 x 120 mm
• ZIP technology: fabric guided and tensioned in side rails for wind resistance
• Built-in installation: housing, fabric and side rails integrated into façade with windows
• Functions: solar shading, glare reduction, heat control, privacy and insect protection
