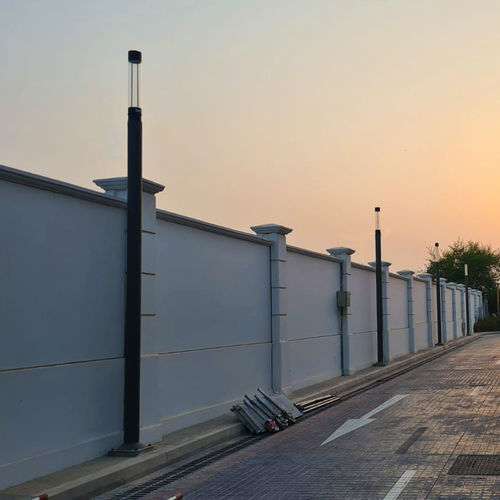

iOtto Plus is a multi purpose urban lighting column suitable for squares, roads, pedestrian precincts, car parks and sports areas. Modules are fully rotatable and adjustable. The system can be integrated to control systems, HI-FI speakers, cameras and chargers. Advanced thermal design with cutting-edge manufacturing process and materials.
Designed to last in extremely harsh environments.
LED Type - High efficiency LEDs, available in 2700K, 3000K, 4000K, 5000K, 6500K CCT tolerance within a 3-step MacAdams ellipse and LM80 compliant.
Nominal Voltage - 220V-240V AC, 50/60Hz
Color Rendering Index - CRI> 80 standard and CRI>90 on request.
Optics - TOP Module: Area Lighting.
BSISQ® LED Module: Rotationally symmetrical 30°/ 60° / 90° or asymmetrical light distribution.
BSIFL® LED Module: Rotationally symmetrical 30°/ 60° / 90° or asymmetrical light distribution.
Materials - Corrosion resistant double layer polyester powder coated paint finish die cast aluminium housing, aluminium extruded column (EN AW-6060) with stainless steel screws (A4 grade) and silicone gaskets. Power unit is built in. Available in anthracite gray as a standard finish or any desired RAL colour.
Optional Coating - Marine grade.
Accessories - Adjustable LED Floodlight.
Diffuser - Shockproof PMMA UV Stabilised Diffuser.
LED Specification. - L90B50 > 100000 hours life time.
Energy Effciency Class (EEC) - A++
Operating Temperature - -40°C / +55°C
Power Factor - >0.95
Control Systems - DALI Interface.
Protection Class - IP66
Impact Resistance - IK09
Insulation Class - Class I
Conformity - Complies with European Standards EN 60598 and CE certified.
