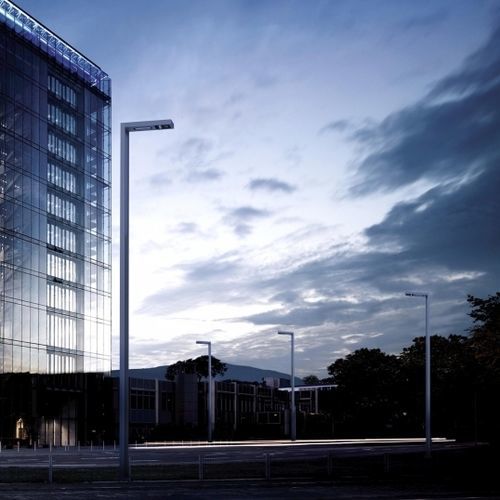

LED lighting with innovative technology and modern design. iMistral Duo offers outstanding light efficiency and integrates itself through the design into historic and modern surroundings with street optics. The LED system offers durability and optimal lumen output. The modules are separately adjustable for the illumination direction to focus on different areas. BSISQ® LED Module integrated.
Designed to last in extremely harsh environments.
Nominal Voltage - 220V-240V AC, 50/60Hz
Color Rendering Index - CRI> 80 and CRI>90 on request.
Light Distribution - Street optics.
Materials - Corrosion resistant double layer polyester powder coated paint finish die cast aluminium housing, aluminium extruded column (EN AW-6060) with stainless steel screws (A4 grade) and silicone gaskets. Power unit is built in. Available in anthracite gray as a standard finish or any desired RAL colour. Adjustable joint for beam direction 0° - 30°. BSISQ® LED Module
Optional Coating - Marine grade.
Diffuser - Terminal block.
LED Specification - Thermal-shock resistant tempered glass.
Energy Efficiency Class (EEC) - L90B50 > 100000 hours life time.
Operating Temperature - A++
Power Factor - -40°C / +55°C
Control Systems - DALI Interface.
Protection Class - IP66
Impact Resistance - IK08
Insulation Class - Class I
Conformity - Complies with European Standards EN 60598 and CE certified.
