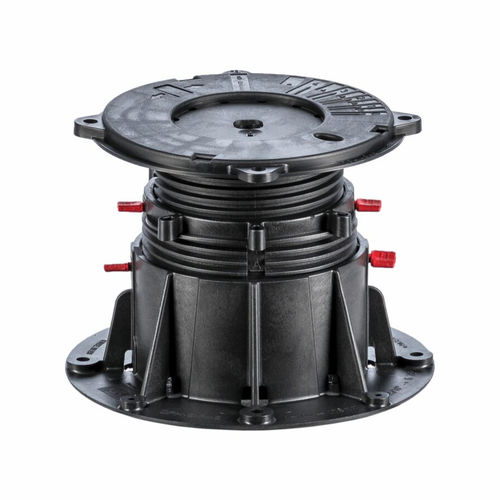

The strong and hard-wearing DPH pedestal is the eldest member of Buzon® pedestal family. With the adjustable height of 100 to 175 mm and the PH5 integrated slope corrector (up to 5%), DPH-5-PH5 is the ideal support for use in public spaces or on major construction projects.
The DPH pedestal maintains its strength and stability even under heavy and frequent use. Thanks to its reinforced structure, it is particularly recommended for use with heavier floor finishes such as large-format concrete slabs.
Adjustable from 100 to 175 mm with slope corrector integrated
This pedestal is composed with:
1 slope corrector
1 DPH-5 top
1 ring
1 DPH-5 base
4 locking keys
Technical information of the DPH-5-PH5:
Height of the pedestal : 100 - 175 mm
Diameter of the top : 155 mm
Diameter of the base : 200 mm
Weight : 652 g
Breaking load (kg) : 1702 kg
