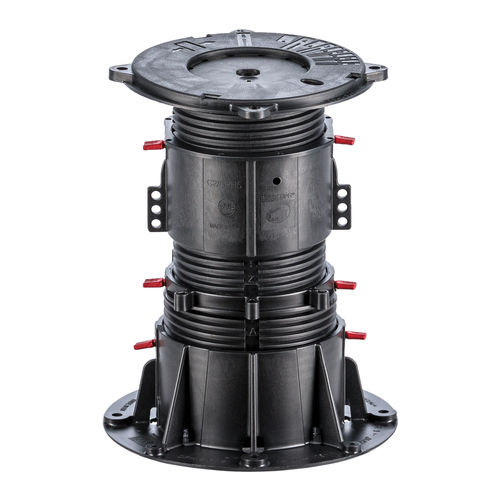

The strong and hard-wearing DPH pedestal is the eldest member of Buzon® pedestal family. With the adjustable height of 175 to 285 mm and the PH5 integrated slope corrector (up to 5%), DPH-6-PH5 is the ideal support for use in public spaces or on major construction projects.
The DPH pedestal maintains its strength and stability even under heavy and frequent use. Thanks to its reinforced structure, it is particularly recommended for use with heavier floor finishes such as large-format concrete slabs.
Adjustable from 175 to 285 mm with slope corrector integrated
This pedestal is composed with:
1 slope corrector
1 DPH-5 top
1 coupler DPH-C2
1 DPH-5 base
6 locking keys
Technical information of the DPH-6-PH5:
Height of the pedestal : 175 - 285 mm
Diameter of the top : 155 mm
Diameter of the base : 200 mm
Weight : 938 g
Breaking load (kg) : 1542 kg
