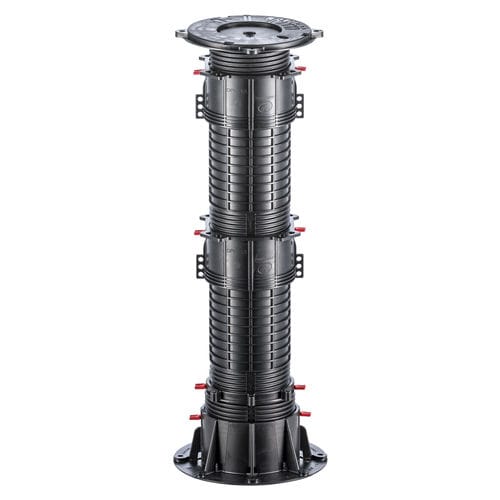

The strong and hard-wearing DPH pedestal is the eldest member of Buzon® pedestal family. With the adjustable height of 465 to 625 mm and the PH5 integrated slope corrector (up to 5%), DPH-9-PH5 is the ideal support for use in public spaces or on major construction projects.
The DPH pedestal maintains its strength and stability even under heavy and frequent use. Thanks to its reinforced structure, it is particularly recommended for use with heavier floor finishes such as large-format concrete slabs.
Adjustable from 465 mm to 625 mm with slope corrector integrated
This pedestal is composed with:
1 slope corrector
1 DPH-5 top
2 couplers DPH-C5
1 DPH-5 base
8 locking keys
Technical information of the DPH-9-PH5
Height of the pedestal : 465 - 625 mm
Diameter of the top : 155 mm
Diameter of the base : 200 mm
Weight : 1,617 kg
Breaking load (kg) : 1307 kg
