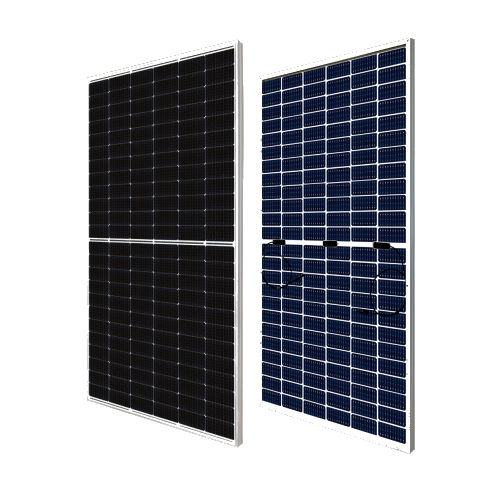

Bifacial High Power Dual Cell PERC Module
Bifacial module up to 540 W
· 182 mm wafer + 144 dual cell + PERC technology
· Front side power up to 540 W
· 29.5 % more energy yield in the lifetime
Lower BOS cost and LCOE
· 12.3% LCOE reduction because of higher energy yield and lower system cost
· Compatible with mainstream trackers
Enhanced reliability
· Up to 50% lower degradationLID / LeTID mitigation
· Lower hot spot temperature
· Better shading tolerance
* 12 years enhanced product warranty on materials and workmanship
* 30 years linear power output warranty
According to the applicable Canadian Solar Limited Warranty Statement.
Dimensions: 2266 ˣ 1135 ˣ 35 mm (89.2 ˣ 44.7 ˣ 1.38 in)
Weight: 32.4 kg (71.4 lbs)
Max. System Voltage: 1500 V (IEC/UL) or 1000 V (IEC/UL)
MORE RELIABLE
Minimizes micro-crack impacts
Heavy snow load up to 5400 Pa,
wind load up to 2400 Pa*
1st year power degradation no more than 2%
Subsequent annual power degradation no more than 0.45%
MANAGEMENT SYSTEM CERTIFICATES*
ISO 9001:2015 / Quality management system
ISO 14001:2015 / Standards for environmental management system
OHSAS 18001:2007 / International standards for occupational health & safety
