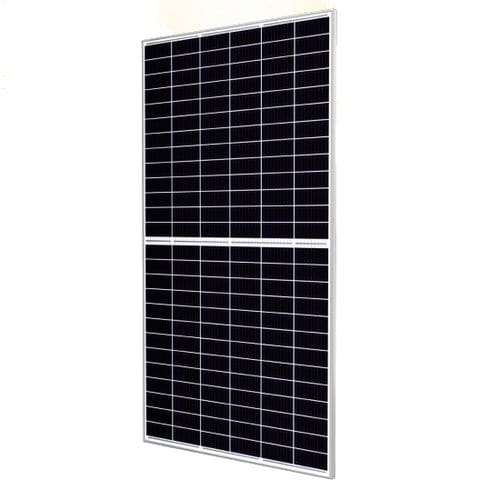

High Power Dual Cell PERC Module
Higher module power
· 158+ mm wafer + 156 pcs dual cell + PERC technology
· Module power up to 450W
· 2.2% more energy yield in module lifetime
Lower BOS cost and LCOE
· 2.5% lower LCOE
· Compatible with mainstream trackers
Enhanced reliability
· Up to 50% Lower LeTID
· Mechanical Load Up to +5400/-2400 Pa
· Better micro-crack resistance
* 12 years enhanced product warranty on materials and workmanship
* 25 years linear power output warranty
According to the applicable Canadian Solar Limited Warranty Statement.
Dimensions: 2168 X 996 X 35 mm (85.4 X 39.2 X 1.38 in)
Weight: 23.7 kg (52.2 lbs)
Max. System Voltage: 1500 V (IEC) or 1000 V (IEC)
MORE RELIABLE
Minimizes micro-crack impacts
Heavy snow load up to 5400 Pa,
enhanced wind load up to 2400 Pa*
1st year power degradation no more than 2%
Subsequent annual power degradation no more than 0.55%
MANAGEMENT SYSTEM CERTIFICATES*
ISO 9001:2015 / Quality management system
ISO 14001:2015 / Standards for environmental management system
OHSAS 18001:2007 / International standards for occupational health & safety
