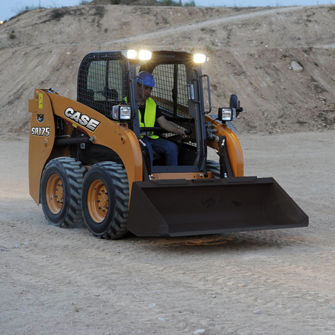

Skid steer loader SR175

SPECIFICATIONS FRAME SIZE Frame Size Medium Frame EMISSIONS LEVEL Emission Level Tier 4F / Stage 3B PERFORMANCE SPECS Rated Operating Capacity 50% 790 kg ROC with counterweights 50% 835 kg Tipping Load 1588 kg Lift Cylinder Breakout Force* 17.0 kN Bucket Cylinder Breakout Force* 32.3 kN ENGINE Engine Make - Model ISM N844LTADI-F (Turbo) Displacement 2.2 l Horsepower 67 hp @ 2800 rpm Peak torque 208 Nm @ 1800 rpm TRAVEL SPEED Low Range 11.9 km/h High Range (Optional) 18.5 km/h HYDRAULIC SYSTEM Pump flow 78 LPM Optional high flow 116 LPM Relief Pressure 210 bar Optional enhanced high flow (bar) N/A WEIGHTS Operating Weight 2842 kg Shipping Weight 2705 kg SERVICE CAPACITY Fuel Tank 73.8 l
