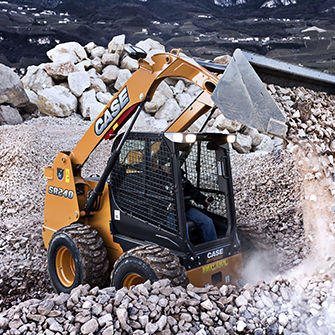

Skid steer loader SR240

Skid steer loader - SR240 - Case Construction
Skid steer loader - SR240 - Case Construction
Skid steer loader - SR240 - Case Construction - image - 2
Skid steer loader - SR240 - Case Construction - image - 3
Skid steer loader - SR240 - Case Construction - image - 4
Skid steer loader - SR240 - Case Construction - image - 5
Skid steer loader - SR240 - Case Construction - image - 6
Add to favorites
Compare this product

Characteristics

Operating weight

3,350 kg
(7,385.5 lb)

Engine power

55 kW
(74.8 hp)

Description

SPECIFICATIONS FRAME SIZE Frame Size Large Frame EMISSIONS LEVEL Emission Level Tier 4F/ Stage 3B PERFORMANCE SPECS Rated Operating Capacity 50% 1088 kg ROC with counterweights 50% 1178 kg Tipping Load 2177 kg Lift Cylinder Breakout Force* 25.0 kN Bucket Cylinder Breakout Force* 39.4 kN ENGINE Engine Make - Model FPT F5H (Turbo) Displacement 3.4 l Horsepower 74 hp @ 2500 rpm Peak torque 314 Nm @ 1400 rpm TRAVEL SPEED Low Range 12.4 km/h High Range (Optional) 18.5 km/h HYDRAULIC SYSTEM Pump flow 92 LPM Optional high flow 143 LPM Relief Pressure 210 bar Optional enhanced high flow N/A WEIGHTS Operating Weight 3350 kg Shipping Weight 3200 kg SERVICE CAPACITY Fuel Tank 96.5 l
