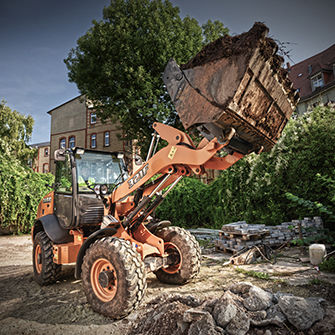

All-wheel steer loader 321F

SPECIFICATIONS TRANSMISSION Hydrostatic 4-wheel Drive Transmission Travel speed is proportional to the pressure on the throttle Speed with standard tyres Operating speed range 0-5 km/h Travel speed range (STD speed version) 0-20 km/h Travel speed range (High speed version) 0-14.4 km/h Optional High Travel Speed 33 km/h (upon request) “Inch & Brake” Pedal Power transfer from the transmission to the bucket hydraulics at constant rpm. Optimum speed control at low speed. Optional Creep Speed Set and adjust travel speed in the 1-20km/h (STD speed version) 1-14.4km/h (High speed version) range, adjust engine rpm for hand-free asphalt planing, snow blowing, brooming (upon request) DIFFERENTIAL CHOICE Limited slip front & rear or open with 100% lock on front and rear differentials TYRES Tyres 14.5-20 BRAKES Standard brakes disc brake. (Located in hubs) Parking brakes disc brake on transmission shaft STEERING Fully hydraulic center pivot steering Front and rear wheels follow the same track Steering angle of 40° to each side Emergency steering function (1) According to 2000/14/EG & appendixes (2) According to ISO 6396 (3) According to ISO 8041 ELECTRICAL SYSTEM Voltage 12 V Battery 95 A.h Alternator 120 A.h CAPACITIES Diesel 86 l Engine oil 7 l Cooling liquid 13 l Total hydraulic oil 53 l Front axle 9 l Rear axle 11 l HYDRAULICS Gear pump for loading and steering hydraulics Priority valve favouring steering hydraulics
