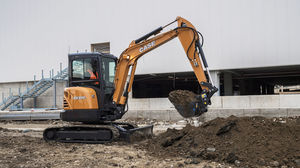

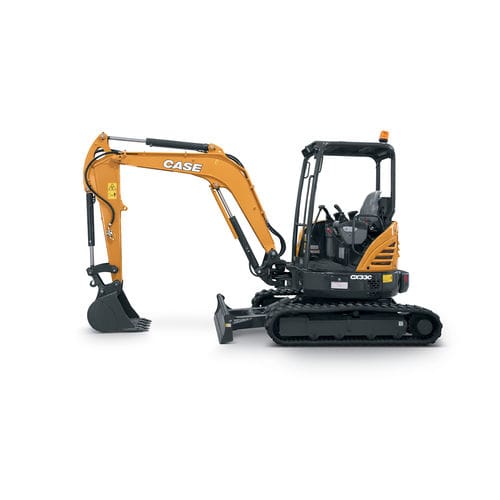

Mini excavator CX33C

crawlerfor constructiondiesel

STANDARD EQUIPMENT Short arm (1300 mm) Rubber tracks (300 mm) ROPS / TOPS / FOPS compliant Canopy Emergency stop switch Pilot system with accumulator 2 speed travel with auto shift-down system 1st auxiliary 2-way circuit controlled with pedal Foldable boom swing pedal Suspension seat with seatbelt Standard anti-theft with interval setting function Waterproof digital instrument cluster Centralized greasing inlet SPECIFICATIONS ENGINE Model Yanmar 3TNV88F-ESHYB Displacement (cm³) 1642 Rated gross horse power (hp/kW) 24.4 / 18.2 (ISO 14396) @ rpm 2200 Max torque (Nm/rpm) 89 / 1200 Emissions level Tier 4F / Stage V HYDRAULIC SYSTEM Main Pumps Pump delivery [l/min] (Pressure [Bar]) Variable displacement axial piston pumps 2 x 37.4 (230) Gear pump delivery 23.1 (205) 1st Auxiliary Circuit 60.5 (205) 2nd Auxiliary Circuit 60.5 (205) SLEWING & TRAVEL SPEEDS Slewing speed (rpm) 9.5 Boom slewing angle (left/right) 75°/ 50° Travel Speed - Low (1st) (km/h) 2.5 Travel Speed - High (2nd) (km/h) 4.2 OPERATING WEIGHT & GROUND PRESSURE (Operating weight includes operator, full fuel tank and one bucket) Cab (kg) - Canopy (kg) 3095 TRANSPORT FEATURE (weight is with full fuel tank, without operator, without bucket) Weight (Cab) (t) - Weight (Canopy) (t) 2805 Max length (mm) 4640 / 4665 Max height (mm) 2500 Max width (mm) 1550
