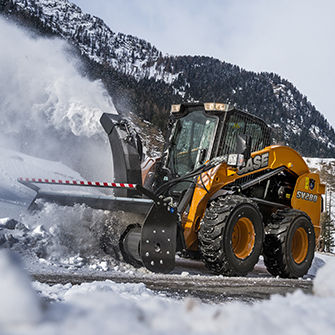

Skid steer loader SV280

SPECIFICATIONS FRAME SIZE Frame Size Large Frame EMISSIONS LEVEL Emission Level Tier 4F / Stage 3B PERFORMANCE SPECS Rated Operating Capacity 50% 1270 kg ROC with counterweights 50% 1360 kg Tipping Load 2540 kg Lift Cylinder Breakout Force* 25.0 kN Bucket Cylinder Breakout Force* 33.7 kN ENGINE Engine Make - Model FPT F5H (Turbo) Displacement 3.4 l Horsepower 74 hp @ 2500 rpm Peak torque 314 Nm @ 1400 rpm TRAVEL SPEED Low Range 12.4 km/h High Range (Optional) 18.5 km/h HYDRAULIC SYSTEM Pump flow 92 LPM Optional high flow 143 LPM Relief Pressure 210 bar Optional enhanced high flow N/A WEIGHTS Operating Weight 3670 kg Shipping Weight 3475 kg SERVICE CAPACITY Fuel Tank 96.5 l
