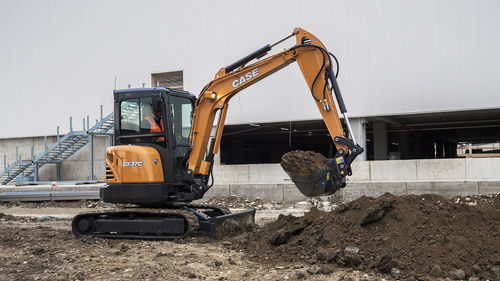

Mini excavator CX37C

crawlerswivelfor construction

STANDARD EQUIPMENT Short arm (1300 mm) Rubber tracks (300 mm) ROPS / TOPS / FOPS compliant Cab / Canopy Emergency stop switch Pilot system with accumulator 2 speed travel with auto shift-down system 1st auxiliary 2-way circuit controlled with pedal Foldable boom swing pedal Suspension seat with seatbelt Radio predisposition (Cab version) Standard anti-theft with interval setting function Waterproof digital instrument cluster Centralized greasing inlet SPECIFICATIONS ENGINE Model Yanmar 3TNV88F Displacement (cm³) 1642 Rated gross horse power (hp/kW) 24.4 / 18.2 (ISO 14396) @ rpm 2200 Max torque (Nm/rpm) 89 / 1200 Emissions level Tier 4F / Stage V HYDRAULIC SYSTEM Variable displacement axial piston pumps Pump delivery (l/min) 2 x 37.4 Pressure (bar) 230 Gear pump delivery Pump delivery (l/min) 23.1 Pressure (bar) 205 1st Auxiliary 2-way Circuit Pump delivery (l/min) 60.5 Pressure (bar) 205 2nd Auxiliary 2-way Circuit Pump delivery (l/min) 60.5 Pressure (bar) 205 SLEWING & TRAVEL SPEEDS Slewing speed (rpm) 9.5 Boom slewing angle (left/right) 75°/ 50° Travel Speed - Low (1st) (km/h) 2.3 Travel Speed - High (2nd) (km/h) 4.4 OPERATING WEIGHT (includes operator, full fuel tank and one bucket) Cab (kg) 3760 Canopy (kg) 3620 TRANSPORT FEATURE (weight is with full fuel tank, without operator, without bucket) Weight (Cab) (t) 3660 Weight (Canopy) (t) 3520 Max length (mm) 4790 / 4815* Max height (mm) 2500 Max width (mm) 1740
