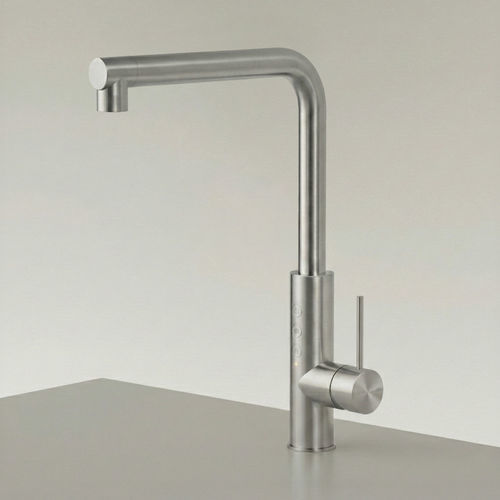

Countertop mixer tap ETW35

stainless steelkitchen1-hole

Product overview
Single-hole tap and mixer designed to dispense filtered still/chilled, sparkling and boiling water. Features a swiveling spout with a height of H. 320 mm. Intended for connection to the WTC02 water microfiltration system. Electrical connection required for boiling-water function.

Features

• Single-hole installation
• Mixer function with separate dispensing of filtered and boiling water
• Swiveling spout — height H. 320 mm
• Compatible with WTC02 microfiltration system
• Requires electrical connection for boiling-water operation
• Material: stainless steel (no chrome plating or galvanic process)

Documents

• Dimensional drawing

Available finishes
S | Satin
L | Polished

Alloy with reduced carbon content, recognised for hygienic properties and good resistance to corrosion, suitable for external environments. Due to its chemical composition stainless steel does not oxidize or rust when in contact with water and air. Its natural protective film ensures long-term resistance and allows restoration. CEA products are manufactured using mechanical processes that preserve the alloy’s properties. The stainless steel used in CEADESIGN production is not treated with chrome plating or galvanic processes, maintaining an ecological, fully recyclable and hygienic material.

Special finishes
KD | Black Diamond
Z | Bronze
P | Copper
X | Light Gold

Special finishes are produced on request. They are obtained by depositing a high-thickness mixture of zirconium powder and graphite through an evaporation process in vacuum (plasma), creating a thin condensed film. This treatment increases resistance to detergents and salty air and improves scratch resistance. The Black Diamond finish also reduces limescale adhesion thanks to self-lubricating properties. All CEADESIGN special finishes are ecological and biocompatible. Variations in color tone are a characteristic of the finishing process and not manufacturing defects; some oxidation-related nuance changes may occur, notably with Bronze and Copper, which contribute to the material’s visual depth.

Key article code
Model | Item | Colour | Wood essence | Special finish | Finish
GAS | 05 | G | / | / | S
ZIQ | 02 | / | / | X | L
GIO | 25 | W | N | KD | S

S = satin finish
L = polished finish

Example 1
GIO 25 W N KD S
Model: GIOTTO | Article: 25 | Silicone rubber colour: W = White | Wood essence: N = Canaletto Walnut | Special finish: KD = Black Diamond | Finish: S = satin

Example 2
GAS 05 G S
Model: GASTONE | Article: 05 | Handle colour: G = Anthracite grey | Finish: S = satin

Product variants

• ETW37
• ETW41
• WTC02 (microfiltration system)
• ETW39
• ETW31
• ETW33
• ETW29
• ETW43

Technical specifications

• Brand: CEADESIGN
• Commercial model: ETW35
• Type: Single-hole tap and mixer with swiveling spout
• Functions: Filtered still / chilled, sparkling and boiling water; mixer function
• Spout height: H. 320 mm
• Compatibility: To be connected to WTC02 microfiltration system
• Electrical connection: Required (boiling-water function)
• Material: Stainless steel (no chrome plating or galvanic process)
• Standard finishes: S (Satin), L (Polished)
• Special finishes: KD (Black Diamond), Z (Bronze), P (Copper), X (Light Gold)
