Roof sandwich panel COMPOCEL® ALH
for crosswallsfor interiorfor partition wall

roof sandwich panel
roof sandwich panel
roof sandwich panel
Add to favorites
Compare this product


Characteristics

Applications
roof, for crosswalls, for interior, for partition wall, for furniture, for false ceiling
Facing material
plastic laminate facing, 2 laminated faces
Core material
aluminum honeycomb core
Width

1,200 mm, 1,250 mm
(47 in, 49 in)

Length

2,400 mm, 3,000 mm
(94 in, 118 in)

Thickness

Min.: 10 mm
(0.39 in)

Max.: 25 mm
(0.98 in)

Description

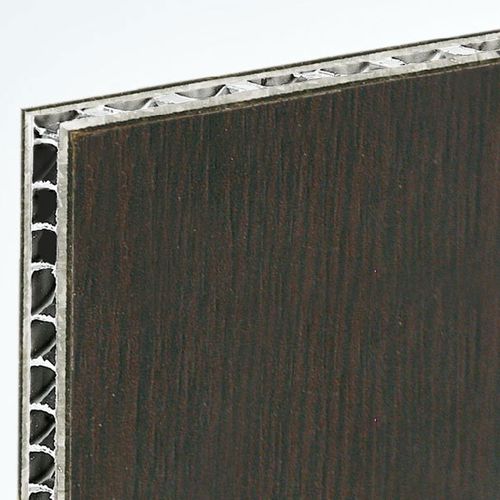

COMPOCEL® ALH​ is a sandwich panel bonded with aluminium face material and coated on one side with a laminate ply. Its core instead is made of aluminium honeycomb.This panel combines high mechanical properties with decorative elements. The HPL plies (skins) can be in fact finished with different colours and motives. Lightweight panel COMPOCEL® ALH can be applied in different sectors and for following applications: partitions, interiors, furniture, ceilings and floors. A - FACED ON ONE OR BOTH SIDES with decorative laminate Thickness: from 0,7 mm B - STRUCTURAL ADHESIVE C - UPPER SKIN IN RAW ALUMINIUM Thickness: from 0,5 mm D - ALUMINIUM HONEYCOMB (Alloy series 3000*) with hexagonal cells Diameter: Ø3/8” Thickness Foil: 50 microns On request: other thicknesses, special alloys, treatments and pre paint with ral colors * To the Aluminium alloy series 3000 belong: Aluminium alloy 3003, Aluminium alloy 3005, Aluminium alloy 3103, Aluminium alloy 3104
