Crosswall sandwich panel COMPOCEL® H

for interiorfor partition wallfor furniture

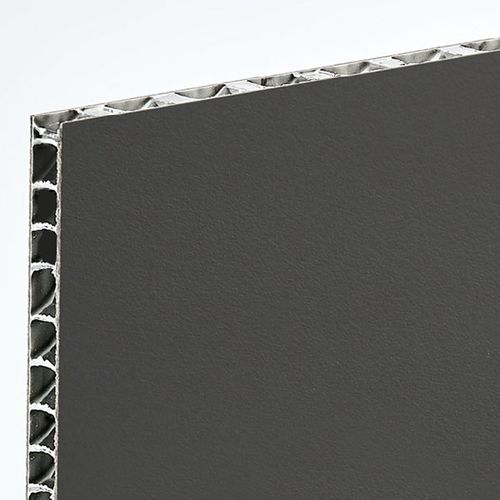

COMPOCEL® H is a sandwich panel with a core in aluminium honeycomb bonded with high pressure laminate face material. The external layer in laminate can have various finishes and colours. Lightweight panel COMPOCEL® H can be applied in different sectors and applications (partitions, interiors, furniture, ceilings and floors). A - SKINS OF HIGH PRESSURE LAMINATE Thickness: from 0,7 to 4 mm - Other thicknesses on request - Colors on request B - STRUCTURAL ADHESIVE C - CORE IN ALUMINIUM HONEYCOMB Aluminium honeycomb (Alloy 3003/3005/3103/3104) with hexagonal cells Diameter: Ø 1/4”, Ø 3/8”, Ø 3/4” Thickness Foil: from 50 to 70 microns
