Panel cladding BR5-36

galvanized steelribbed

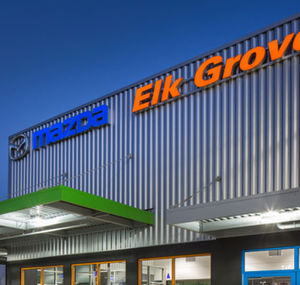

Profile Series Exposed Fastener Panels are extremely versatile panels that can be used as exterior or interior walls, roofs and soffits with ribs that run horizontally or vertically. When used for walls, the panels may be inverted. In addition, the panels may be insulated to add a level of thermal protection. Features: Substrates: 18 [1.19mm], 20 [.91mm], 22 [.76mm] & 24 [.60mm] gage G90 galvanized steel, Galvalume & Galvalume Plus Optional .032 [.81mm], .040 [1.02mm] & .050 [1.27mm] aluminum Optional 20 [.91mm], 22 [.76mm] & 24 [.60mm] gage stainless steel Surface Finish: Smooth standard Non-directional embossing optional Panel Depth: 1 1/2 [38mm] Panel Width: 36 [914mm] Panel Lengths 5 ft. [1.52m] to 40 ft. [12.19m] standard. Contact CENTRIA for shorter and longer lengths.
