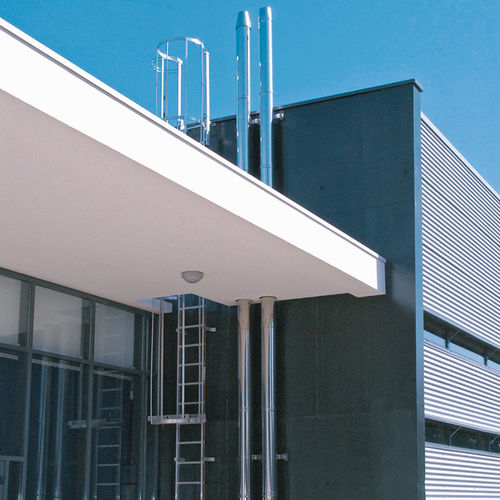

Stainless steel smoke flue CONDENSOR

complete system

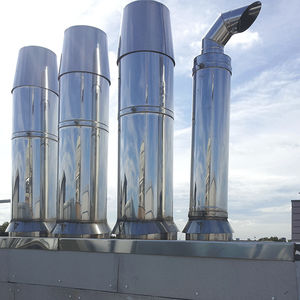

CONDENSOR is a high quality stainless steel single wall “system chimney”, “connecting flue pipe” or “chimney liner”. It is continuously welded to provide a pressure and moisture resistant system when used with the optional Joint Seal, for applications requiring pressure tightness up to 200 Pa. CONDENSOR is CE marked and designated as suitable for use with all gas, oil, pellet, wood and coal burning appliances, whether these are atmospheric, pressure-jet, or fully condensing. It is available in 13 diameters (from Ø80 up to Ø600mm) >Quality: Production is performed under quality control of CERIC (research and testing centre for the chimney and flue industry). Exceptional high resistance to corrosion. > Performance: The Poujoulat cone on cone patented Condensor joint provides a 50mm depth engagement, giving an excellent performance of P1 level at 200 Pa. > Safety: Easy fixing locking band with safety closing ring pin with all components. > Easy to maintain: Full range of accessories. Lengths with inspection door available. > Innovation: Reducing tees, drain sections, increasers provide wide varying and flexible solutions to multiple boiler and cascade systems. > Aesthetic: Exceptionally good looking chimney and terminal with integrated support bracketry plus excellent flashing/weather plate arrangements, to suit all roof types. The CONDENSOR range can be used under positive pressure and suitable for condensing applications, by using a double lip silicone seal which ensures a perfect watertight joint. These seals must be purchased separately and fitted on site by a professional installer.
