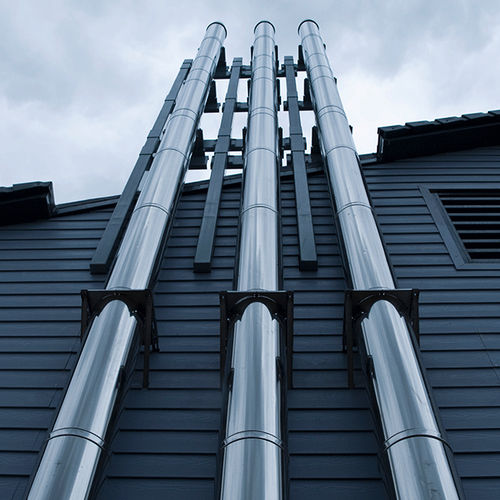

Stainless steel chimney flue THERMINOX

complete system

THERMINOX is a high quality stainless steel twin wall pre-insulated “system chimney” for all heating appliances. It is CE marked and designated as suitable for use with all gas, oil, pellet and wood burning appliances, whether these are atmospheric, pressure-jet, or fully condensing. A continuously welded liner provides a pressure and moisture resistant system when used with the optional Joint Seal, for applications requiring pressure tightness up to 200 Pa. It is available in 13 diameters (from Ø80 up to Ø600mm). >Optimisation: High thermal performance ensures maximum efficiency of chimney operation and minimum use of space in the building with rapid stabilisation of flue gas temperatures to optimise chimney operation. > Performance: CE marked BSEN 1856-1 and 4 hour fire rating to BS476. > Safety: Exceptionally strong joints only require brackets at 4 metres intervals, with up to 16 metres on a base support with up to 3 metres free-standing capability. > Installation: easy to install : Simple push fit joints secured with quick action toggle clip Locking Band, wide range of quality engineered support components with exceptional ability to adjust to suit the building fabric. > Innovation: Perfect adaptor solutions to all appliance outlets and types, providing a correct sealed connection. > Aesthetic: Exceptionally good looking chimney with recessed locking bands integrated support bracketry plus excellent flashing/weather plate arrangements, to suit all roof types.
