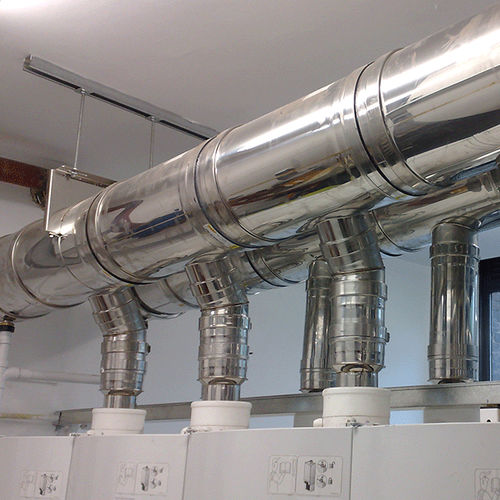

Metal smoke flue SYSTEM CASCADE

complete system

‘System Cascade’ is a standard single wall flue header kit that’s designed to fit on all boiler manufacturers ranges of cascade boilers designated as suitable for the boiler / flue configurations: Type B22, B22p and / or B23, B23p. All kits are compatible with the Poujoulat single wall flue or Poujoulat twin wall insulated flue to connect the header kit to the chimney riser. It is available in 7 diameters (Ø130, Ø150, Ø180, Ø200, Ø250 & Ø300, & Ø350). The branch connection diameter is Ø110mm (Ø130mm branch with non-return valve available on request) >Quality: Production is performed under quality control of CERIC (research and testing centre for the chimney and flue industry). Exceptional high resistance to corrosion. > Performance: The Poujoulat cone on cone patented Condensor joint provides a 50mm depth engagement, giving an excellent performance of P1 level at 200 Pa. > Safety: Easy fixing locking band with safety closing ring pin with all components. > Easy to maintain: Full range of accessories. Lengths with inspection door available. > Innovation: Reducing tees, drain sections, increasers provide wide varying and flexible solutions to multiple boiler and cascade systems. > Aesthetic: Exceptionally good looking chimney and terminal with integrated support bracketry plus excellent flashing/weather plate arrangements, to suit all roof types.
