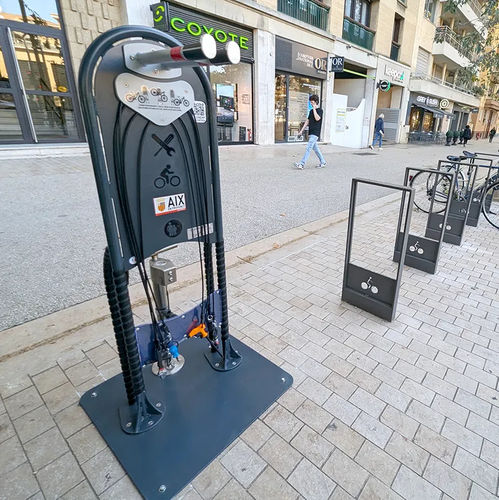

Metal bike repair station CLEVER IFIX

with tool kitinflation pumpcommercial

Overview
Self-service repair and inflation station dedicated to maintenance, repair and inflation of all types of bicycles, scooters, strollers and wheelchairs. Designed for indoor or outdoor use, suitable for public spaces (bike lanes, greenways), municipalities, companies and sports facilities.

Main functions

• Cantilever central support allowing the bike to be hung and suspended for ergonomic working position.
• Integrated, anti-corrosion treated toolset with extra-flexible sheathed cables and swivel-mounted retractable tools for smooth operation.
• Universal inflation pump compatible with Presta, Schrader and Dunlop valves, equipped with a pressure gauge for accurate inflation.
• Outdoor versions and options (stainless steel pump, IFIX-Pro S version) resistant to weather and vandalism.
• Accessibility and inclusivity: tools and pump usable for wheelchairs, strollers, scooters and skateboards.
• Educational and interactive elements: QR code linking to mechanical video tutorials to guide the user.

Safety and ergonomics
Central support equipped with two lateral stops to ensure optimal holding and prevent bike tipping. Depending on the model, one or two wheel clamps allow immobilization by the front or rear wheel to facilitate inflation and mechanical adjustments.

Inflation pump
Standard pump: steel body and baseplate with pressure gauge and universal multivalve head (Presta, Schrader, Dunlop). Option: fully stainless steel pump for outdoor self-service installations, performance up to 10 bar.

Installation
Fixing and anchoring methods (excerpts):
Station fixing via 8 anchor bolts M10/100 mm onto buried concrete base or concrete slab.
Fixing by chemical anchor using threaded rods M10/120 mm into asphalt with at least 5 cm thickness.
Pump fixing: to the station via a metal saddle (security screws); to the ground via 2 anchor bolts M6/60 mm or, for the stainless pump option, 3 bolts M10/80 mm.

Supplied tooling

• 1 set of Allen keys 3 / 4 / 5 / 6 mm + Torx T25
• 1 adjustable spanner
• 2 metal tire levers
• 1 pedal wrench 15 mm
• 1 Allen key 8 mm (crank tightening, thru-axles, pedals...)
• 1 multi-size spoke wrench
• 1 Phillips screwdriver (PZ2)
• Inflation pump with pressure gauge and universal multivalve head (standard steel version; option: stainless steel pump)

FAQ — key points
The IFIX station enables common repairs (puncture repair, brake/drive adjustments, small tweaks) and is designed to be universal (various bike types and sizes). Tools are tethered securely to reduce loss or vandalism. Signage and pictograms on the station facilitate intuitive use.

Maintenance and after-sales
As manufacturer, the offer includes spare parts supply and the possibility of intervention for replacement of damaged components. Maintenance is designed to be simple: easy disassembly of main elements and specific tools provided for operations.

Technical characteristics / specifications

• Bike support height: 141 cm
• Station height: 149 cm
• Station width: 45 cm
• Total depth with pump: 63 cm
• Fixings: 8 anchor bolts M10/100 mm on concrete base, or threaded rods M10/120 mm on asphalt ≥ 5 cm; pump fixing options indicated above
• Pump: universal multivalve head (Presta, Schrader, Dunlop), pressure gauge, up to 10 bar (stainless version available)
• Customization: choice from RAL color chart (216 colors) and possibility to add logo
• Structural warranty: 5 years (excluding damage from vandalism, incorrect installation or paint impact)
