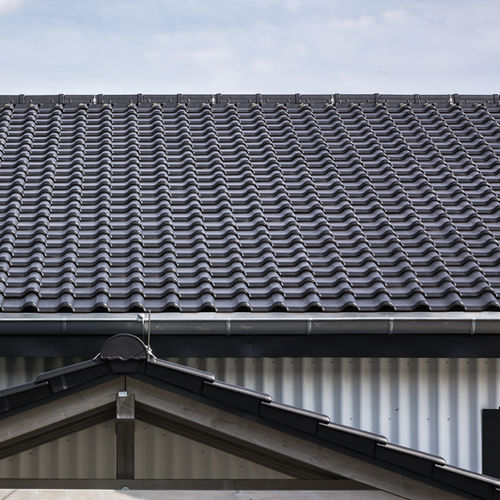

Interlocking roof tile TITANIA

flatPortugueselarge

Flexible with maximum adjustment range. Top value for money at 9 units/m² Very versatile and easy to install, thanks to a generous 44 mm adjustment range Sophisticated interlock technology ensures optimum water control and provides increased protection against rain intrusion The 44 mm adjustment tolerance is the largest in the CREATON flat roof tile series and guarantees the best possible fit to any batten spacing Covering width min. approx. - 260 mm Covering width on av. approx. - 262 mm Max. coverage width (approx.) - 264 mm Min. gauge (approx.) - 380 mm Covering length on av. approx. - 402 mm Max. gauge (approx.) - 424 mm Tile requirement min. (approx.) - 9.0 pcs/m² Average tile requirement (approx.) - 9.5 pcs/m² Brickware max. approx. - 10.1 pcs/m² Unit weight (approx.) - 4.9 kg/piece Weight per m² (approx.) - 46.6 kg/m² Weight per pallet (approx.) - 966 kg Pcs per mini-pack - 4 piece Pcs per pallet - 192 piece
