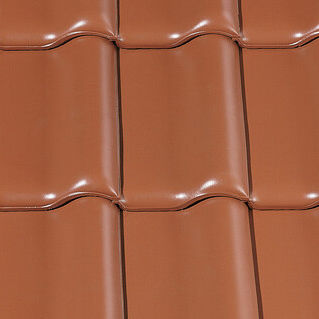

Interlocking roof tile MZ3

flatPortuguesedouble

The updated classic. Distinctive side ribs prevent water penetration, even in the strongest winds 28 mm adjustment range for optimum adjustment to suit batten spacing Effective water drainage and optimum flow behaviour, thanks to technically perfected overlapping First-rate raw materials ensure the smoothest tile surface Double bottom ribbing ensures the tile stays firmly in place and prevents blown snow or sleet from penetrating Improved water drainage thanks to optimised head interlock Covering width min. approx. - 216 mm Covering width on av. approx. - 218 mm Max. coverage width (approx.) - 220 mm Min. gauge (approx.) - 334 mm Covering length on av. approx. - 345 mm Max. gauge (approx.) - 360 mm Tile requirement min. (approx.) - 12.6 pcs/m² Average tile requirement (approx.) - 13.3 pcs/m² Brickware max. approx. - 13.9 pcs/m² Unit weight (approx.) - 3.6 kg/piece Weight per m² (approx.) - 47.9 kg/m² Weight per pallet (approx.) - 889 kg Pcs per mini-pack - 5 piece Pcs per pallet - 240 piece
