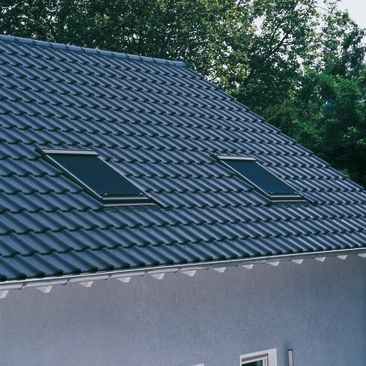

French roof tile MAGNUM
flatinterlockinglarge

french roof tile
french roof tile
french roof tile
french roof tile
french roof tile
french roof tile
french roof tile
Add to favorites
Compare this product


Characteristics

Type
french
Shape
flat, interlocking
Size
large
Material
clay
Color
red, gray, black
Appearance
smooth, slate look
Other characteristics
single-channel
Width

357 mm (14 in)

Length

495 mm (19 in)

Description

The economical large tile. High cost-effectiveness thanks to mega format Combination of size and quality without compromises due to premium technology Seamless overlap and optimal flow behaviour Three stable suspension lugs ensure a secure hold and reliable circulation around roof battens The interlock, water control and especially favourable cw value make MAGNUM an outstanding tile that is suitable for both very flat and very steep roofs Even with strong winds, the penetration of rainwater is prevented by the labyrinth technology, with five specially shaped and extremely pronounced side ribs Covering width min. approx. - 295 mm Covering width on av. approx. - 296 mm Max. coverage width (approx.) - 297 mm Min. gauge (approx.) - 390 mm Covering length on av. approx. - 400 mm Max. gauge (approx.) - 411 mm Tile requirement min. (approx.) - 8.2 pcs/m² Average tile requirement (approx.) - 8.5 pcs/m² Brickware max. approx. - 8.7 pcs/m² Unit weight (approx.) - 4.9 kg/piece Weight per m² (approx.) - 41.7 kg/m² Weight per pallet (approx.) - 848 kg Pcs per mini-pack - 4 piece Pcs per pallet - 168 piece
