Aluminum expansion joint FWS SERIES

plasterwallceiling

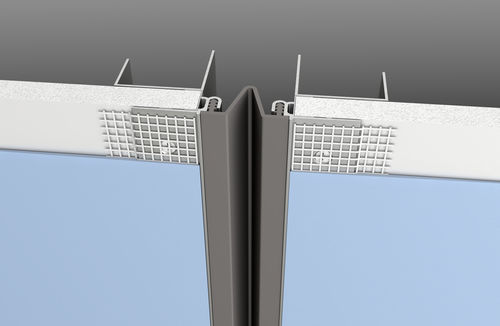

Flush, gasketed wall & ceiling joint covers have been designed to match their floor counterparts and allow for multi directional movements. These covers are suitable for most wall and ceiling finishes and are completely unobtrusive. Gasketed models are perfect for areas where hygiene is a particular requirement as gaskets can be sealed for infection control & cleanability. This cover allows for large horizontal movements of more than half the joint width thanks to its accordion type central gasket. A small recess in its aluminium side frames allows the cover to become flush with plaster or mortar wall finishes. Joint Width: up to 150mm Horizontal: up to +150/-105mm Vertical: up to ±20mm Lateral: up to ±6mm Aluminium sections: mill finished as standard Gaskets: Santoprene gaskets are available in four standard colours. Other colours can be supplied subject to minimum quantity. Fixings (by others) to suit substrate at 450mm centres. Note: Frames are not supplied pre-drilled Aluminium sections: 3m Gaskets: supplied cut to suit from [max] 15m rolls
