Rubber expansion joint GTW SERIES

thermoplasticaluminumwall

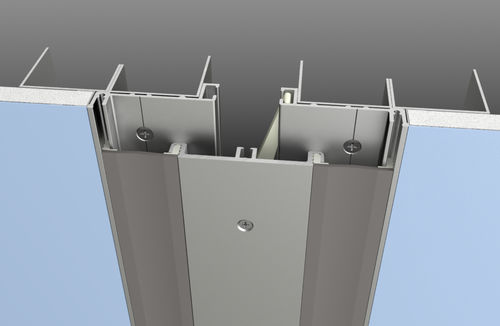

Flush, gasketed wall & ceiling joint covers have been designed to match their floor counterparts and allow for multi directional movements. These covers are suitable for most wall and ceiling finishes and are completely unobtrusive. Gasketed models are perfect for areas where hygiene is a particular requirement as gaskets can be sealed for infection control & cleanability. Wall or ceiling covers with flush aluminium centre plate and dual CS TPR Gasket. Ideal for areas with larger movement requirements, suitable for most wall and ceiling finishes. Joint Width: up to 100mm Horizontal: up to ±38mm Vertical: up to ±15mm Lateral: up to ±8mm Aluminium sections: centre plate is supplied in a natural anodised finish as standard (can be powder coated, subject to minimum quantity), other sections are mill finished. Gaskets: co-extruded Thermoplastic Rubber (TPR) gaskets are available in four standard colours. Other colours can be supplied subject to minimum quantity. Fixings (by others) to suit substrate at 450mm centres. Note: Frames are not supplied pre-drilled.
