Rubber expansion joint FCF SERIES

thermoplasticaluminumwall

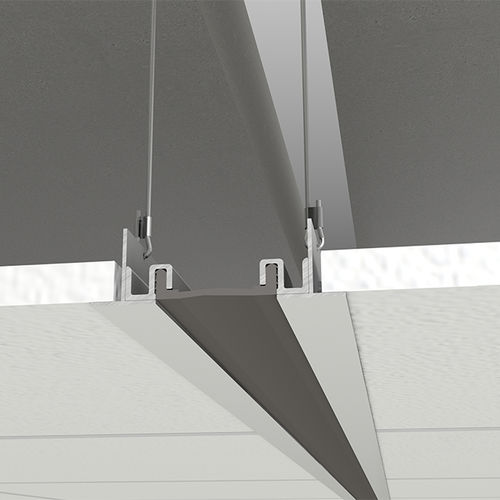

Flush, gasketed wall & ceiling joint covers have been designed to match their floor counterparts and allow for multi directional movements. These covers are suitable for most wall and ceiling finishes and are completely unobtrusive. Gasketed models are perfect for areas where hygiene is a particular requirement as gaskets can be sealed for infection control & cleanability. Flush gasketed suspended ceiling expansion joint covers offering minimal visual impact. Joint Width: up to 100mm Horizontal: up to +50/-75mm Vertical: up to ±15mm Lateral: up to ±12mm Aluminium sections: mill finished as standard. Gaskets: 100 & 200 models use co-extruded Thermoplastic Rubber (TPR) gaskets, 300 & 400 models use Santoprene gaskets. Both types are available in four standard colours. Other colours can be supplied subject to minimum quantity. Fixings (by others) to suit substrate at 450mm centres Note: Frames are not supplied pre-drilled Aluminium sections: 3m Gaskets: supplied cut to suit from [max] 32m rolls (TP), 15m rolls (Santoprene)
