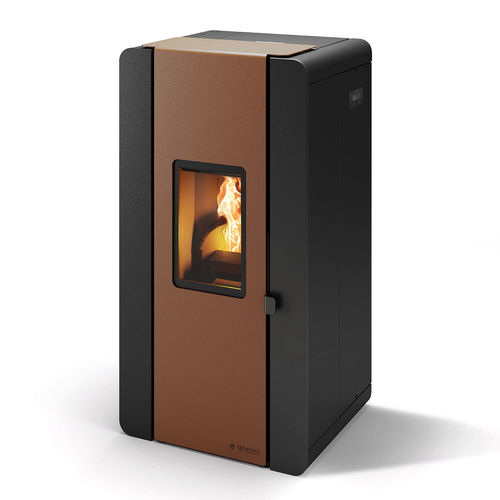

It is the new range of CS Thermos thermo stoves. It is a generation of thermo stoves designed to achieve important yields and a high output to water, thanks to the greater exchange surface. The double colored door of Venexia frames the hearth glass and enhance the flame, making the handle and other technical details invisible, with an effect of elegant simplicity. The models are equipped with all safety devices and also: 3-way diverter valve with priority to DHW system, electronic circulator, 8 lt. expansion tank.
On the return circuit, a chemical-physical water treatment system must be installed, for instance a magnetic dislimer.
Anti-condensation valve to be installed.
Tipology: Thermostove
Fuel: Pellets, Pellets/Biomass
Coating: Metal
Maximum power: 16.5 kW
Thermal power introduced: 15.4 kW
Nominal thermal power to water: 13.6 kW
Heated volume: 430 m³
Performance with pellets or wood: 93.3 %
CO emissions at 13% O²: 167 mg/Nm³
Power levels: 6
Flue gas outlet: Rear, Upper
Air ducting: No
Weight: 220 kg
Dimensions WxDxH: 63 x 55 x 121 cm
Pellet tank capacity: 21 kg
Flue gas output diameter: 80 mm
This product complies with the Class 4 Stars, according to the emission and performance requirements of the Decree of 7 November 2017, n°186 (Italy).
