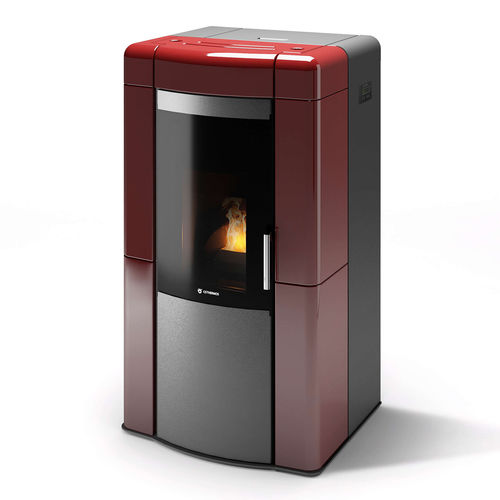

It’s a thermo stove designed to achieve important yields and a high output to water, thanks to the greater exchange surface. The special ceramic coating gives to Murano its personality and elegance. The models are equipped with all safety devices and also:
- 3-way diverter valve with priority to DHW system
- electronic circulator
- 8 lt. expansion tank
Anti-condensation valve to be installed.
On the return circuit, a chemical-physical water treatment system must be installed, for instance a magnetic dislimer.
Tipology: Thermostove
Fuel: Pellets, Pellets/Biomass
Coating: Ceramic
Maximum power: 16.5 kW
Thermal power introduced: 15.4 kW
Nominal thermal power to water: 13.6 kW
Heated volume: 430 m³
Performance with pellets or wood: 93.3 %
CO emissions at 13% O²: 167 mg/Nm³
Power levels: 6
Flue gas outlet: Rear, Upper
Air ducting: No
Weight: 250 kg
Dimensions WxDxH: 67 x 61 x 119 cm
Pellet tank capacity: 21 kg
Flue gas output diameter: 80 mm
This product complies with the Class 4 Stars, according to the emission and performance requirements of the Decree of 7 November 2017, n°186 (Italy).
FEATURE
- Mechanical safety devices: 3 bar outlet valve, boiler thermostat, air pressure switch and water pressure switch.
- Safety electrical safety devices: inductive sensors that constantly check the position of motors rotation; flue gas probe.
