Computer-aided engineering software Ponts-Cadres PICF

for concrete structures2D

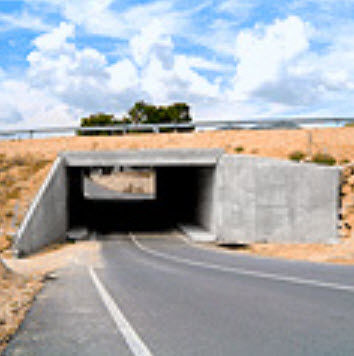

Box culverts The solution to lower passages Box culverts is a program developed for the design and analysis of reinforced concrete box culverts used for underpasses, subways, and drainage works . They can be rectangular, trapezoidal or any type of polygon designed on screen, as well as being single cell or multiple cell elements. The program can also design culverts made up of various aligned prestressed elements by defining the joints or those to be executed on site. Consult our marketing department or your usual distributor of CYPE products for a list of the available national and international codes for this program and their corresponding prices. Design and check Designs and checks all the elements of the culvert: top and bottom slabs, intermediate cell walls, lateral walls and wingwalls (wall and footing), providing all their reinforcement. Checks the angular distortion in the top slab, bottom slab, lateral and dividing walls. The reinforcement of any selected part of the culvert can be consulted or edited. It is also possible to modify the reinforcement and dimensions of the wall and then carry out a Code check. The concrete codes implemented in the Box culverts program are: ACI 318M-11 (USA International) ACI 318-11 (USA) BAEL-91 (R-99) (France) EHE-08 (Spain) EHE-98 (Spain) Eurocode 2 (EU) Eurocode 2 (France) Eurocode 2 (Portugal) IS 456: 2000 (India) NTC: 14-01-2008 (Italy) REBAP (Portugal)
