Steel grating

for stair treadsfor walkwaysfor exterior flooring

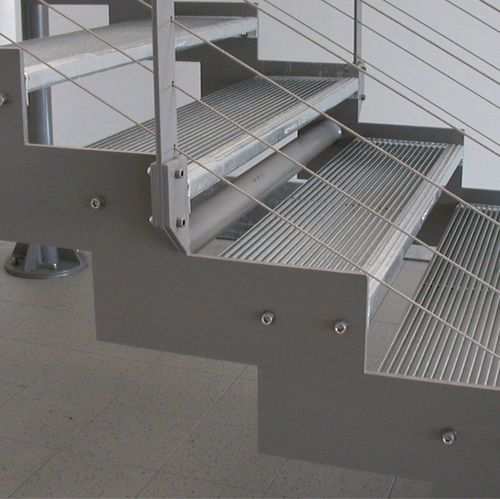

Exclusive to Defim Orsogril, the NO PANIC ANTI-VERTIGO SYSTEM stands out for the special shape of the profile that provides complete screening while preserving the air permeability characteristics typical of grating. The stair tread is designed to comply with current slip resistance regulations. The same type of profile can be used to make landings and floors in general. The landing The system for the composition of landings involves the use of an initial panel with nosing, to which a variable number of interlocking panels are added until the desired length is reached. The panels are joined together with a dovetail joint between the frames. This solution allows for visual continuity between the panels, effectively hiding the joints. TECHNICAL SPECIFICATIONS Weight 18.3 kg each, galvanised Load Stair tread load on maximum span of 1200 mm A_ Initial panel with nosing DIMENSIONS Width (W): 1200 mm Depth (D): 320 mm WEIGHT 16.8 kg/each (self-colour) 17.8 kg each (galvanised) B_ Standard panel DIMENSIONS Width (W): 1200 mm Depth (D): 286 mm WEIGHT 15.2 kg/each (self-colour) 16.2 kg each (galvanised) APPLICATIONS Lightwells Paving Floors Stairs Water traps Mezzanine floors ITEM SPECIFICATIONS ANTIVERTIGINE® ORSOGRIL stair treads to bolt Mesh size mm: 15 Bearing bar mm: special V profile Cross bar mm: Ø 6 Dimensions mm: 1200×315 Special grating panel provided with a special front profile called “nosing” and two perforated side plates for bolting it to the iron stringers of the staircase.
