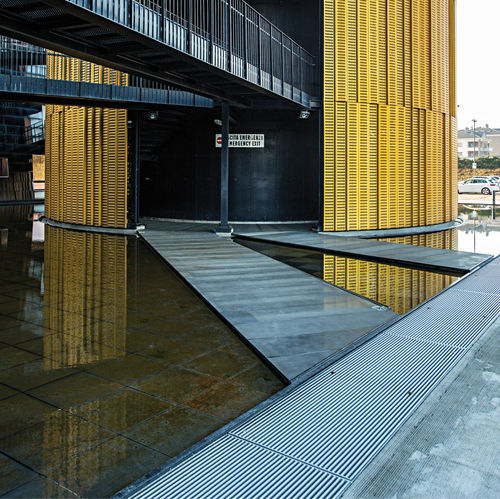

Electro-welded steel grating BARROTTO ANTIQUUM®

for walkwaysfor exterior flooringnon-slip

The welded steel grill BARROTTO ANTIQUUM® thanks to the special non-slip characteristics of its load-bearing bars combined with an exclusive aesthetic value, represents a natural functional and quality choice; its handcrafted look is particularly suitable for historic town centers. The service includes the possibility of custom-made panels, framed and shaped, with the professional support of a technical office in the sector. Both the GEA Standard available from stock in 6100 x 1010 mm panels and the bespoke finished material are CE marked and supplied with corresponding DoP. TECHNICAL CHARACTERISTICS Painting Colours according to RAL table Profile Bearing bars U section 25x12x25 mm (heel-proof) Weight Semi-finished self-colour product 28.6 kg/m2 Standing Load Class 1 pedestrian on maximum span of 1300 mm APPLICATIONS Pedestrian walkways in prestigious or historic urban areas Grating for hoppers Ventilation gratings SPECIFICATIONS ITEMS Welded grating BARROTTO ANTIQUUM® – bespoke framed panels Mesh: 25 (13 mm empty – 12 mm full) x 100 mm U-shaped bearing bar 25x12x25x1,5 mm non-slip Round cross bar Ø 4 mm wire Edging frame in 25×3 mm flat bar Weight kg/m2 : 34.9 (galvanised or painted) As an alternative Finishing: polyester powder coating dark grey 223 on hot-dip galvanised material AGLAIA grating hook for mesh 15 mm – fastening from below CE Certificate (Ref. 0948-CPR-0287)
