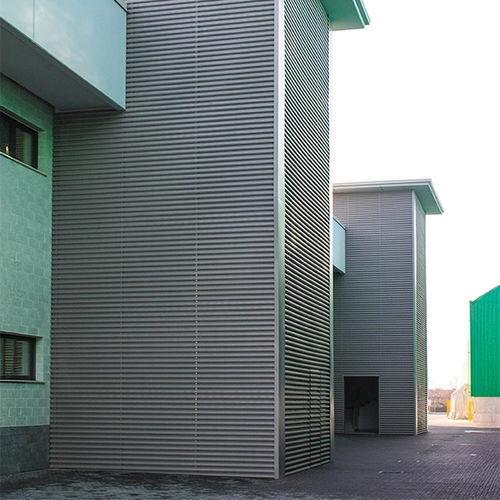

Panel cladding TETI

stripelectro-welded steelmesh

Teti is Defim Orsogril’s exclusive wall cladding system made of electrowelded shaped metal profiles and vertical round bars with a diameter of 4 mm. Available in solid or micro-perforated profile versions, the latter option further enhances the permeability and elegance of the system. Fixing is done by direct application of the unframed panel to the structure, a process that allows for quick, cost-effective and highly flexible installation. This characteristic makes it ideal for transversal projects, meeting the aesthetic and functional requirements of all types of projects. TECHNICAL SPECIFICATIONS Dimensions Mesh size 116×200 mm Horizontal profiles Vertical round bars 4 mm Fixing system Front with self-drilling screws ITEM SPECIFICATIONS The TETI wall cladding consists of modular, monolithic panels, 116×200 mm mesh, special section horizontal profiles (centre distance 116 mm), ø 4 mm vertical connection round bars (centre distance 200 mm). Solid profile Micro-perforated profile Finish: polyester powder coating on hot-dip galvanised material according to UNI EN ISO 1461 or on Sendzimir material. Front fastening system with self-drilling screws. We recommend the use of one fastener per profile. Panel dimensions 5500×1972 mm.
