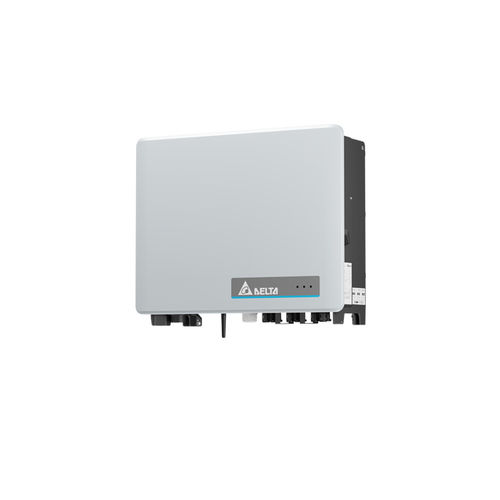

PV inverter M30A FLEX

stringthree-phasefor residential installations

Maximum profitability and versatility The M30A Flex Inverter has a peak efficiency of 98.6 % and has built-in and replaceable AC and DC-side Type 2 SPDs (surge protection devices). 3 MPP trackers are featured for optimum energy harvest on commercial rooftops with multiple angles as well as a wide input voltage range from 200 – 1100 V. The maximum voltage withstand is 1100 VDC. The inverter starts to work when the PV voltage drops below 1000 VDC. Flexible system design For the system planner, maximum flexibility is ensured thanks to a wide input voltage range of 200 - 1000 V and 3 MPP trackers (no string fuses needed). The new unit is compatible with major types of PV modules and the robust IP66 rated enclosure allows outdoor installation. Integrated Wi-Fi for connecting to a smartphone or an internet router. Innovative design A large easy to open front door offers safe and easy access (safety class II) to internal components. Advanced features include arc fault and reverse polarity protection, Anti-PID feature, reactive power compensation 24/7, as well as data point collection for string monitoring and I-V curve creation. Simple installation The lightweight and compact design of the M30A Flex greatly simplifies installation. The inverters include a unique wall mount bracket in the scope of delivery, allowing the units to be easily installed on a variety of wall surfaces.
