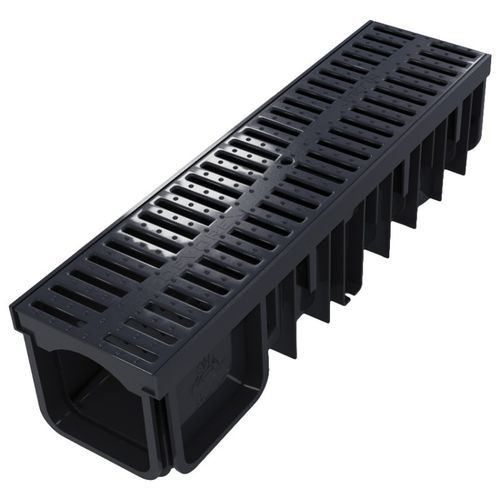

Drainage channel with grating XDRAIN

polymerPPpolyamide

Product overview
System XDRAIN and DRENGAM linear drainage channels cover a wide range of applicable loads – from A15 to C250, suitable for projects from residential to infrastructure. The ribbed structure of the channels (58 ribs) and multiple side chambers ensure optimal strength and durability during load and installation.

Key features

• Load classes available: A15 up to C250 (suitable for pedestrian and vehicular applications depending on the grating choice).
• Ribbed composite channel body (58 ribs) – improved strength and reduced thermal expansion.
• Multiple side chambers for secure fixation into the concrete bed.
• Very good UV resistance and in-depth polymer colouring for long-lasting appearance.
• Lightweight components for easier handling and installation on site.

Grating options

• PP grating (polypropylene) — standard option for this product (example shown).
• Polyamide (PA6 GF35) grating — glass-filled polyamide with high strength and UV resistance; channels with polyamide grating are certified for load class C250.

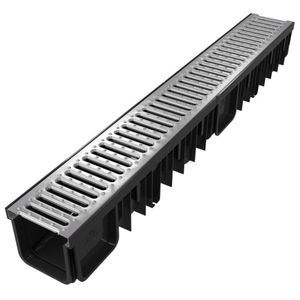

• Metal gratings available: galvanized steel, stainless steel and cast iron for higher load classes and specific aesthetic or durability requirements.

Locking & installation

• "SINGLE CLICK" locking system for gratings — quick and secure locking of metal/polymer gratings; designed for fast, secure assembly without specialized tools.
• Silicone seals on connectors to compensate thermal expansion and to prevent leaks.
• User-friendly installation: lightweight elements, snap-fit connectors and side chambers for anchoring into concrete make installation fast and straightforward.

Materials & durability

• Channel body: durable polymer composite engineered for mechanical shock resistance, low thermal expansion and long-term performance.
• Grating materials: PP (polypropylene), PA6 GF35 (glass-filled polyamide), and metal variants (galvanized steel, stainless steel, cast iron) to match load and project requirements.

Applications

• Linear drainage for residential areas, walkways, terraces, roof drainage and infrastructure projects.
• Variants and grating choices allow adaptation to pedestrian, light vehicular and heavy-duty traffic areas.

Variants / Options

• Colour options shown on site: black and grey (product variations available).
• Multiple channel widths/series: 130/50 and 130/90 channels with different grating types and lengths (0.5 m and 1 m variants shown).

Technical specifications

• Item number (SKU / EAN): 3800150901953
• Model / commercial denomination: 130/90 Channel
• Load class range: A15 – C250 (depending on grating)
• Channel length (example product): 55 cm
• Channel width: 13.5 cm
• Channel height: 12 cm
• Weight: 1.02 kg
• Material (channel): polymer composite
• Grating options: PP (polypropylene), PA6 GF35 (glass-filled polyamide), galvanized steel, stainless steel, cast iron
• Gasket / sealing: silicone seals on connectors
• Total ribs (channel structure): 58 ribs
