Drainage channel with grating 130/50 KIT

polymerpolyamidegalvanised steel grate

Overview
System XDRAIN and DRENGAM linear drainage channels cover a wide range of applicable loads – from A15 to C250, making them suitable for projects from residential areas to heavy infrastructure. The channel's ribbed body (58 ribs) and multiple side chambers provide optimal stiffness and secure fixation in concrete, ensuring long-term performance.

Design and structure

• Ribbed channel body with a total of 58 ribs for improved stiffness and load distribution
• Multiple side chambers for secure anchoring in the concrete bed and enhanced structural behaviour
• Lightweight polymer construction for easier handling and installation

EXCEPTIONAL RESISTANCE
The polymer composite formulation provides high resistance to mechanical impact and minimizes thermal expansion and shrinkage.

“SINGLE CLICK” LOCKING SYSTEM
Quick, reliable locking of metal/polymer gratings; the connection system enables fast assembly without adhesives.

QUICK & EASY INSTALLATION
User-friendly installation requiring no special tools. The low weight of channels and fittings simplifies site handling. Silicone seals on gutter connectors accommodate thermal movement and prevent leaks.

SUSTAINABLE CONSTRUCTION
Multiple side chambers secure the channel in the concrete bed and contribute to long-term structural stability.

FLEXIBILITY IN DESIGN
Side connection capability supports modular layouts and rapid adaptation to project requirements.

POLYAMIDE GRATING (NEW!)
Grating manufactured from glass-filled polyamide (PA6 GF35) — robust, UV-stable material. Channels fitted with polyamide grating are certified for load class C250.

Available variations

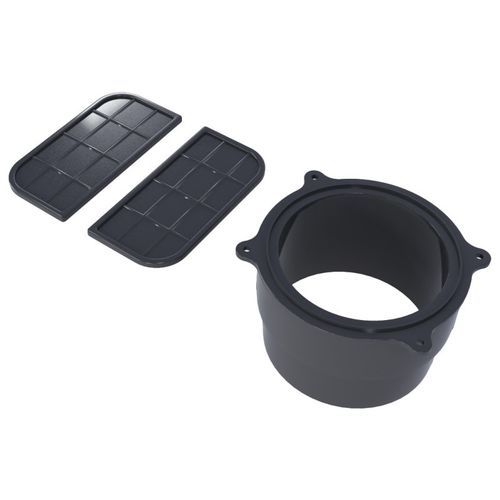

• 130/50 KIT - 2 end caps & outlet Ø100/110 (variation id: 61024)

Characteristics / Technical specifications

• Item number (SKU / EAN): 3800150901939
• Model / commercial name: 130/50 KIT
• Length: 11.5 cm
• Width: 5 cm
• Height: 11.5 cm
• Weight: 0.12 kg
• Applicable load classes: A15 to C250
• Grating option: glass-filled polyamide (PA6 GF35) – certified for C250; other grating options available (galvanized steel, stainless steel, cast iron, PP)
