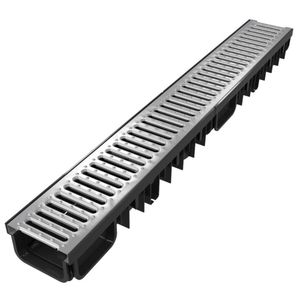

Drainage channel with grating 130/90

polymercompositepolyamide

Description
System XDRAIN and DRENGAM linear drainage channels cover a wide range of applicable loads – from A15 to C250, which makes them suitable for a wide range of projects, from residential to infrastructural.

Construction & performance
The ribbed structure of the channels (a total of 58 ribs) and numerous side chambers contribute to optimal strength and durability during load operation and installation.

Key product features

• Ribbed composite channel structure for increased mechanical strength.
• Numerous side chambers for secure fixation in the concrete bed.
• Specially formulated polymer composite ensures exceptionally high resistance to mechanical shocks and minimal thermal expansion/shrinkage.
• "Single click" locking system for quick and secure locking of metal/polymer grating.
• Quick and easy installation: user-friendly, lightweight channels and fittings; installation does not require specialized tools.
• Coloring in-depth of polymer material for attractive and durable colors and exceptional UV resistance.
• Flexible design: allows side connection of channels and quick adaptation to non-standard structures.
• Available grating options include polyamide (PA6 GF35) grating certified for load class C250, galvanized steel, stainless steel and cast iron gratings.

Materials

• Channels: polymer composite (XDRAIN / DRENGAM systems).
• Grating options: glass-filled polyamide (PA6 GF35) — with UV protection (polyamide grating is offered as a new option), galvanized steel, stainless steel, cast iron.

Performance & installation notes

• Channels are designed for a wide range of applicable loads (A15–C250).
• Silicone seals on gutter connectors compensate material expansion/contraction and prevent leaks.
• Numerous side chambers ensure secure fixation in concrete bed for durable and sustainable construction.

Available variations (examples shown on the product page)

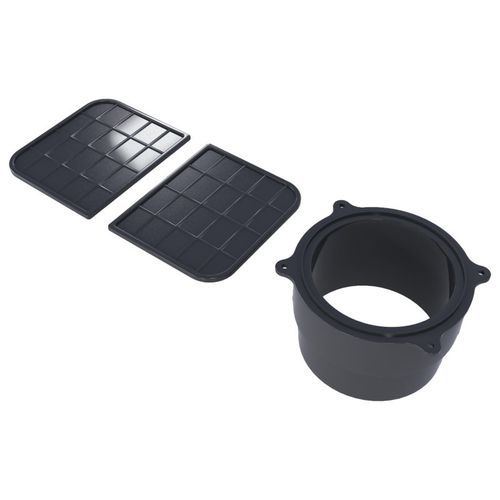

• 130/90 KIT - 2 end caps & outlet Ø100/110 (SKU/EAN: 3800150901960)
• 130/50 KIT - 2 end caps & outlet Ø100/110 (other configuration variants exist)
• Channels with different gratings and lengths: PP grating 0.5 m, PP grating 0.5 m (130/90), galvanized steel grating 1 m, stainless steel grating 1 m, cast iron grating 0.5 m, etc.

Caractéristiques / spécifications techniques

• Item number (SKU / EAN): 3800150901960
• Length: 11.5 cm
• Width: 5 cm
• Height: 11.5 cm
• Weight: 0.14 kg
• Standard load classes supported by the XDRAIN/DRENGAM systems: A15 up to C250 (depending on configuration and grating)
• Grating material option (new): glass-filled polyamide (PA6 GF35) — certified for C250 when used with channels
• Installation: "Single click" locking system for grating; silicone seals on connectors; no special tools required
